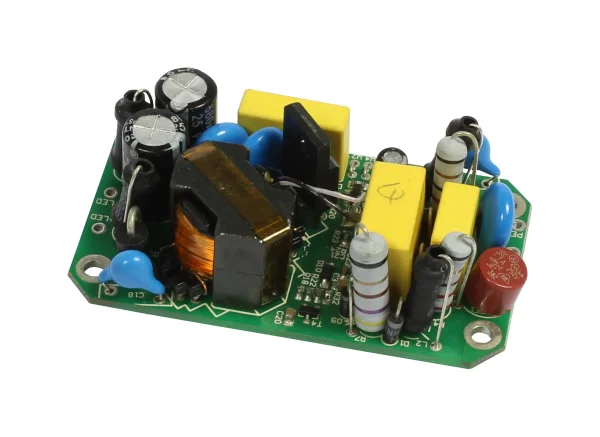

Synergy 21 Netzteil - CC Driver ALL1082 7-21W

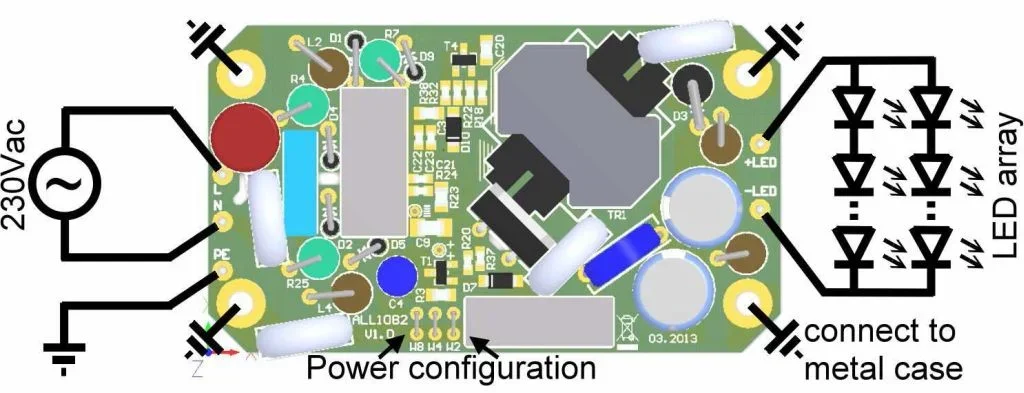

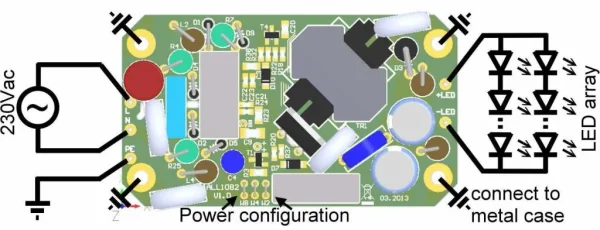

Das Netzteil ALL1082 ist ein primär dimmbares, leistungsgeregeltes Netzteil Anwendungsbereich: 7-21W für z.B. 10W, 20W Baustrahler - Input voltage (normal mode): 207 to 253Vac (47 to 63Hz) - Accepted input voltage: 180 to 270Vac (current maybe vary, refer to diagrams) - Primary dimmable via phase-cut dimmers (leading/trailing edge dimmers) - Inrush current: <300mA - Output power range: 6.4 to 20W (±10%) - Constant power behaviour (CP) - Output voltage range: 8 to 20V (refer to diagrams) - Output OVP shutdown: 21 to 26V - Startup time: typical 250ms - Ramp-up time to full light: typical 500ms - Emergency light function: Input >30Vdc, >24Vac (at 10% nominal power) - Temperature range: -25 to 65°C - Overall efficiency: 78 to 86% - High power factor: 82 to 98% (refer to diagrams) - Temperature derating: Power reducing at 60°C PCB temperature - Thermal shutdown: at 80°C PCB temperature to <20% of nominal power - Outputs connectable in series/parallel to reach higher power/voltage
