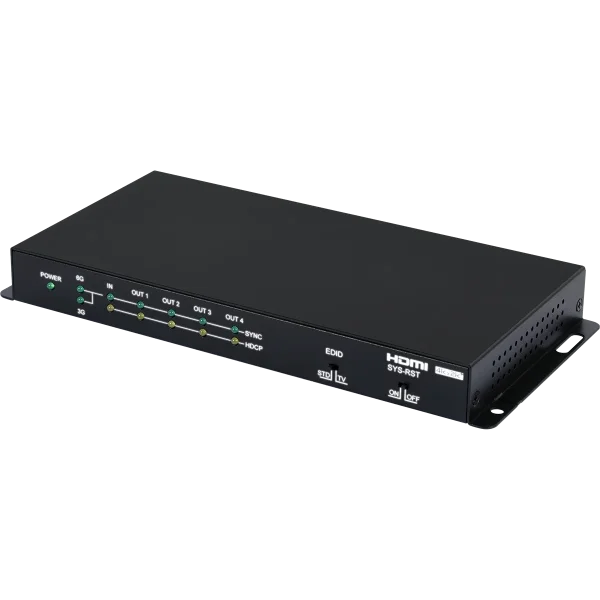

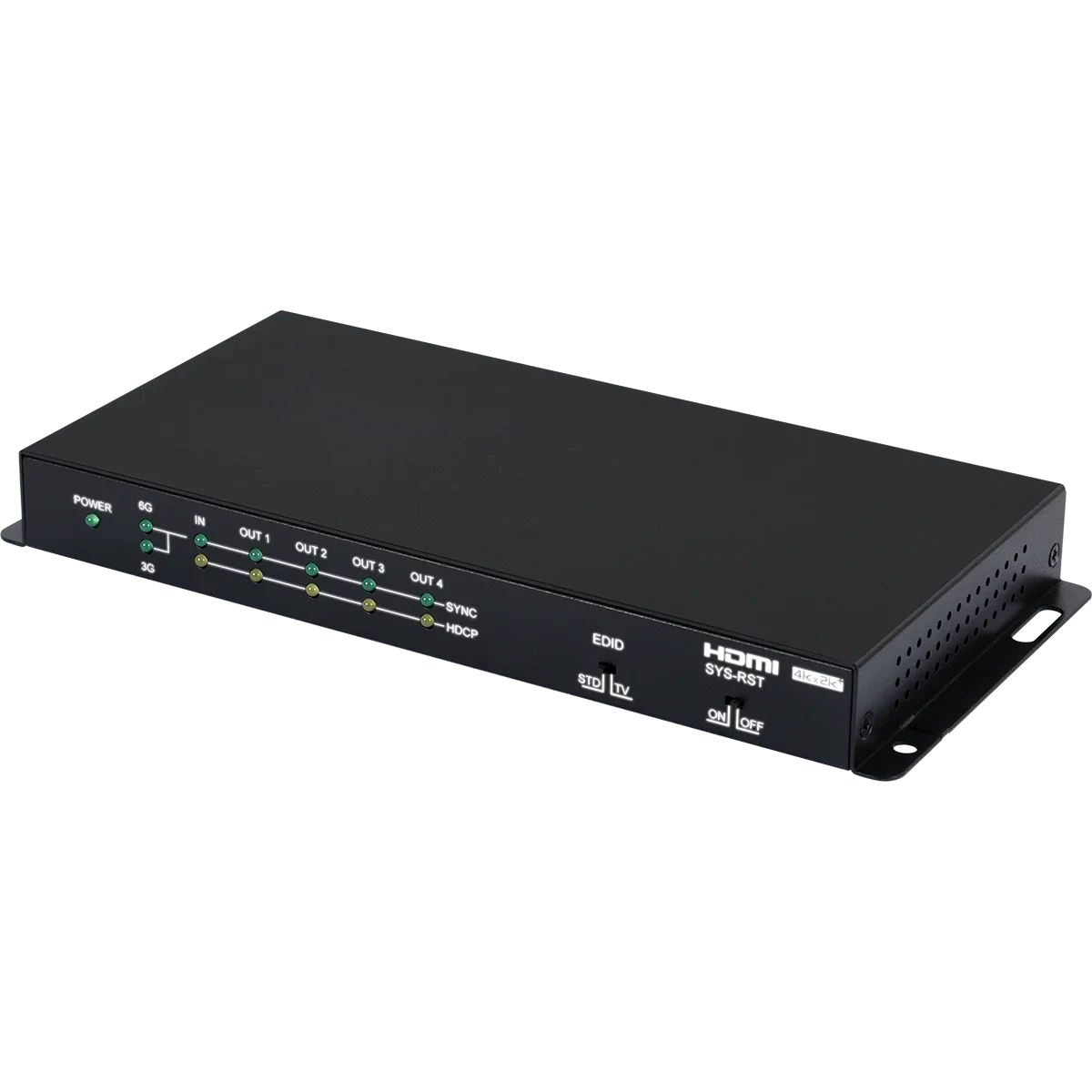

UHD+ 1x4 HDMI Splitter
Klicken zum Vergrößern
Cypress Technology

UHD+ 1x4 HDMI Splitter

Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals , Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats , Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats , Automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID , Independent HDCP management engine for each output ensures stable HDCP performance , Simple to use EDID management options , Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays , Controllable via front-panel switches

Hersteller-Nr.CPLUS-V4T
HerstellerCypress Technology

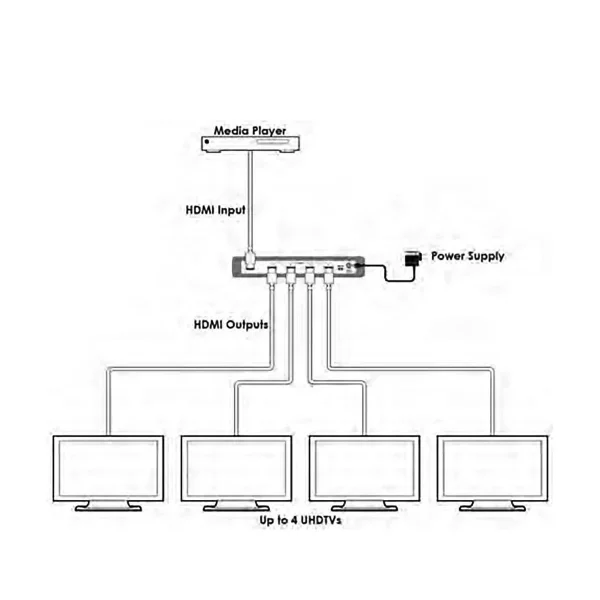

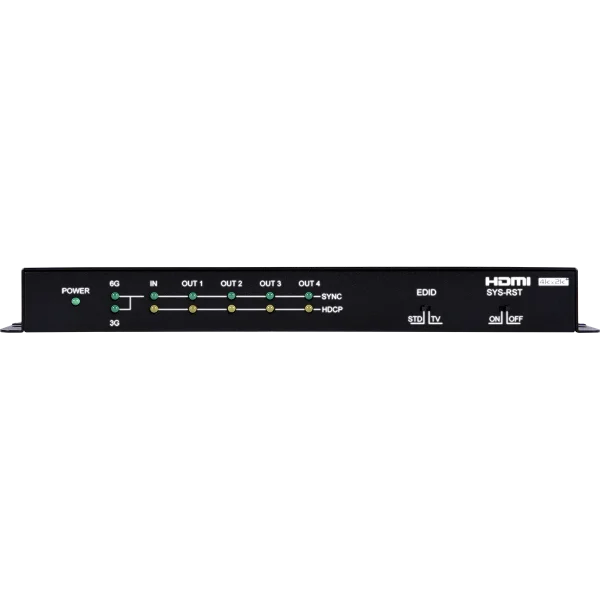

This 4K UHD HDMI Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to 4 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs.

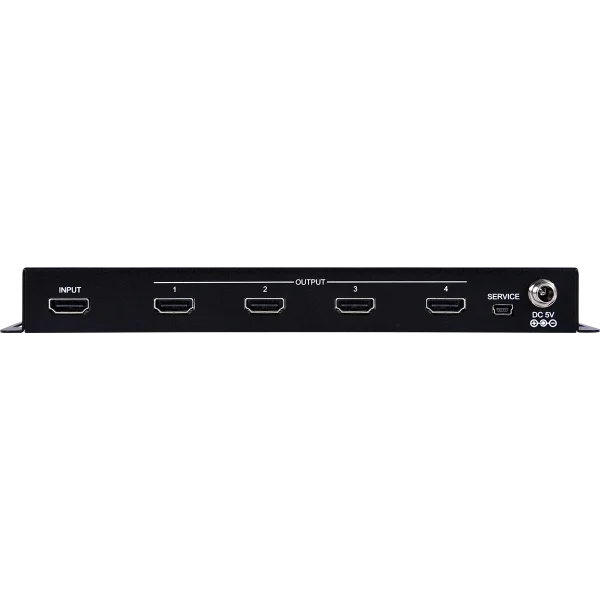

Interfaces
Input Port
  • 1 HDMI (Type A)
Output Port
  • 4 HDMI
Service Port
  • 1 USB (Mini B)
Video
HDMI Compliance
  • 2.0
HDCP Compliance
  • 2.X
Input Signal Types
  • 4K@60 8-bit YUV 4:4:4, HDR10
Output Saignal Type
  • 4K@60 8-bit YUV 4:4:4, HDR10
Resolutions
Maximum Input

4096×2160p@60 YUV 4:4:4 8 bit
Maximum Output 4096×2160p@60 YUV 4:4:4 8 bit
Audio
  HDMI
  • LPCM (8 CH), Bitstream, HD Bitstream
Power
Power Supply
  • 5V/2.6A DC (Locking)
Power Consumption
  • 3.08W
Enclosure
Chassis Material
  • Metal (Steel)
Chassis Color
  • Black
Dimensions (W×H×D)
  • 231.5mm×25mm×108mm [Case Only]
  • 231.5mm×30mm×117mm [All Inclusive]
Weight
  • 608g
Field Firmware Update
Interface
  • USB to PC
Ordering Information
Model No. Product Description
CPLUS-V4T
  • UHD+ 1x4 HDMI Splitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
