UHD+ 6×2 HDMI Matrix with Audio De-Embedding
Klicken zum Vergrößern
Cypress Technology

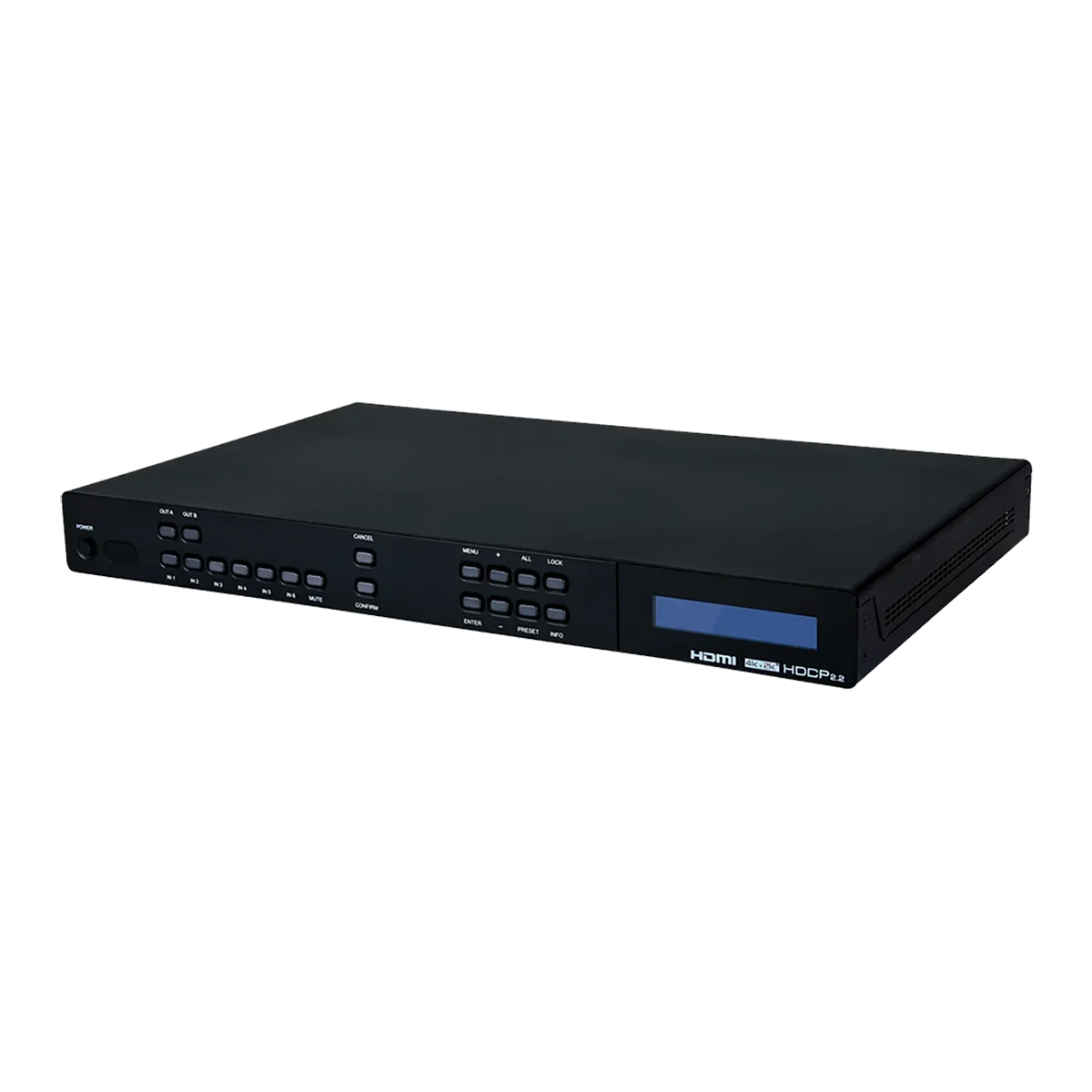

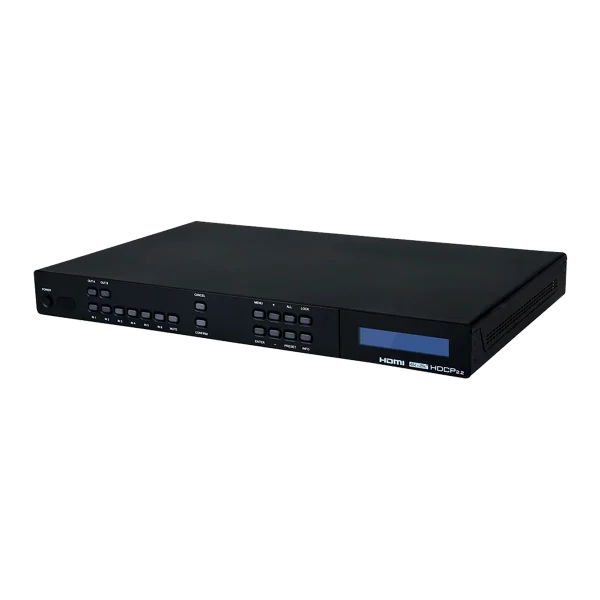

UHD+ 6×2 HDMI Matrix with Audio De-Embedding

HDMI input and output with 18Gbps (600MHz) 4K UHD support , Supports 16-bit Deep Color up to 1080p@60Hz , Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream , Display any of 6 high-definition sources on up to 2 HDTV displays simultaneously , Optical audio extraction paired with each HDMI output (LPCM 2.0 or Bitstream only) , Supports 6 internal EDIDs or 2 external EDIDs copied from connected devices , Controllable via front panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote

Hersteller-Nr.CPLUS-V6H2HP
HerstellerCypress Technology

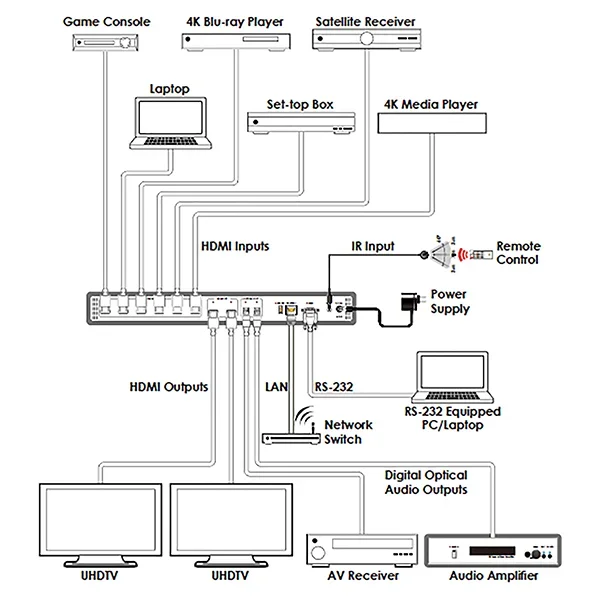

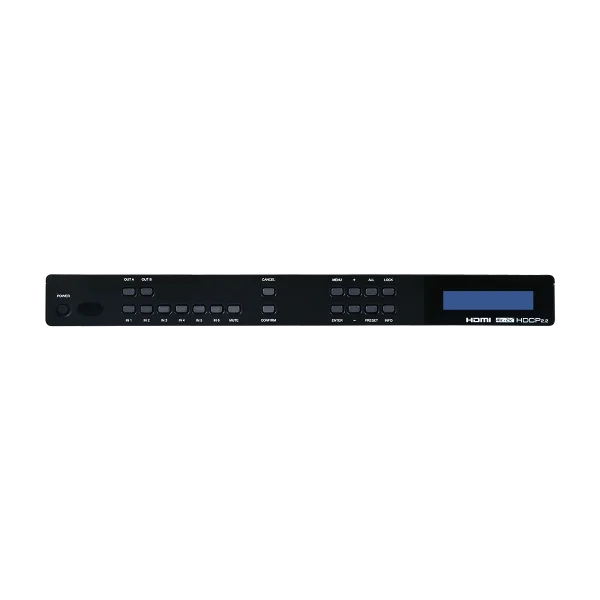

This 4K UHD+ 6 by 2 Matrix provides the ability to connect up to six 4K UHD HDMI sources to up to two 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color (up to 1080p@60Hz), HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between six built in default EDIDs, or an EDID copied from a connected sink device, this matrix can solve many interconnectivity problems. Added flexibility comes from the ability to extract audio from each HDMI output’s source and output it as optical digital audio (LPCM 2.0 and standard Bitstream only). Six fully configurable presets are also provided to simplify the routing process. This unit provides an intuitive set of front panel controls with associated LCD, as well as RS-232, Telnet, WebGUI, and IR remote control options.

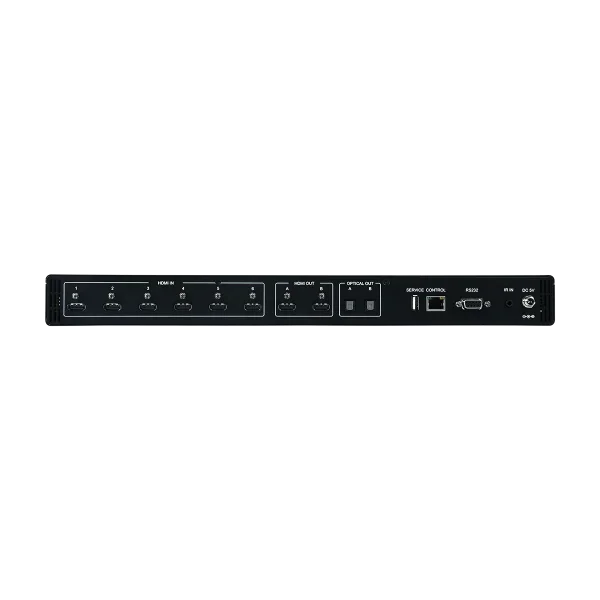

Interfaces
Input Port
  • 6 HDMI
Output Port
  • 2 HDMI
  • 2 TOSLINK (S/PDIF Audio)
Control I/O
  • 1 IR Extender (3.5mm)
  • 1 RS-232 (9-pin D-sub)
  • 1 IP Control (RJ45)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.X
Input Signal Types
  • 3840x2160p@60 8-bit YUV 4:4:4
Output Signal Type
  • 3840x2160p@60 8-bit YUV 4:4:4
Resolutions
Maximum Input HDMI
  • 4096×2160p@60
Maximum Output HDMI
  • 4096×2160p@60
Power
Power Supply
  • 5V/3A DC
Power Consumption
  • 12.65W
Enclosure
Chassis Material
  • Metal
Chassis Color
  • Black
Dimensions (W×H×D)
  • 438mm×44mm×269mm [Case Only]
  • 482mm×52mm×276mm [All Inclusive]
Weight
  • 2840g
Field Firmware Update
Interface
  • USB, WebGUI
Ordering Information
Model No. Product Description
CPLUS-V6H2HP
  • UHD+ 6×2 HDMI Matrix with Audio De-Embedding

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
