UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M)
Klicken zum Vergrößern
Cypress Technology

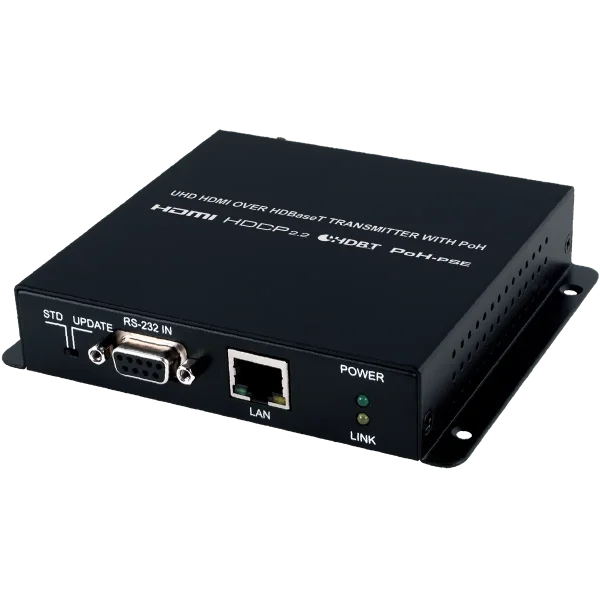

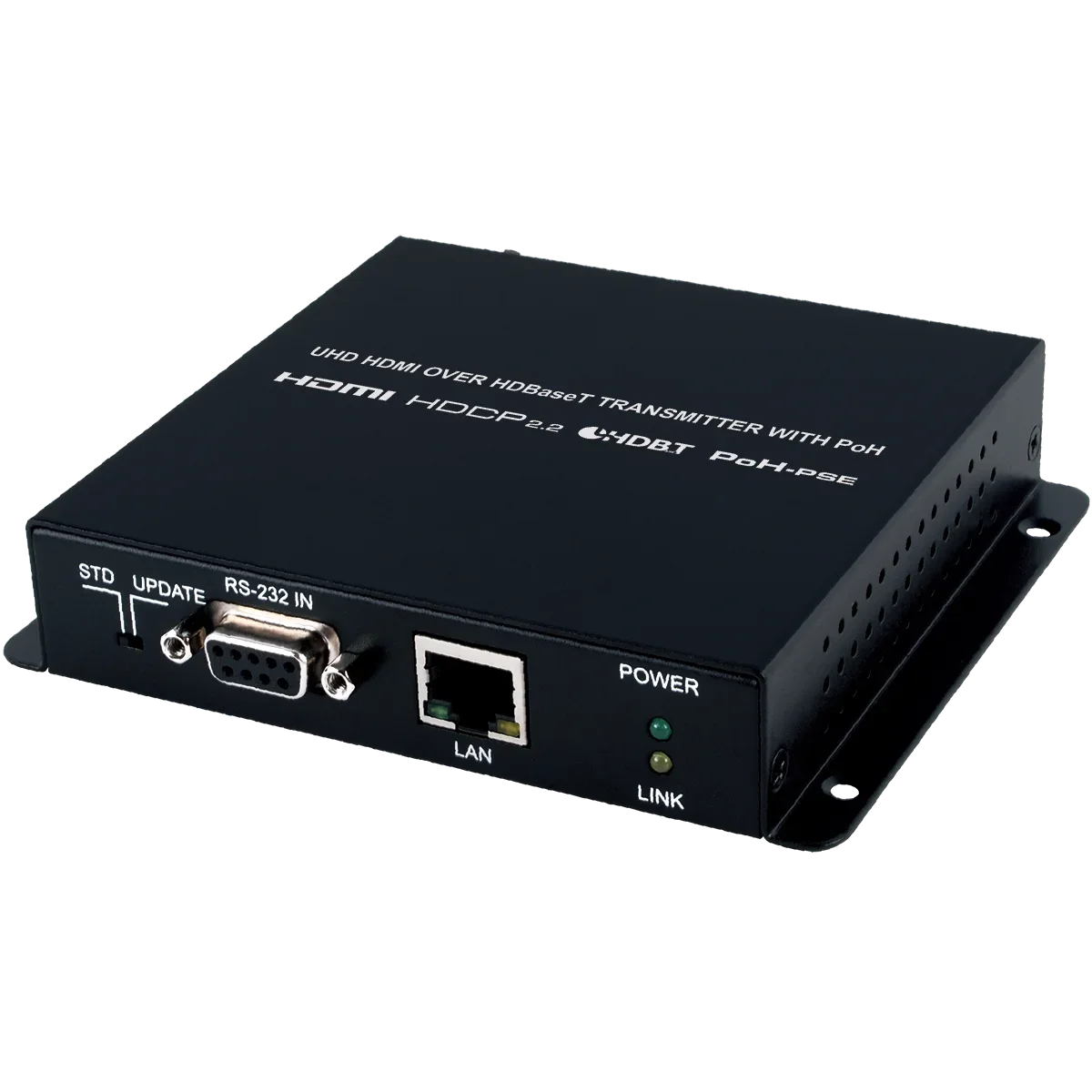

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M)

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI, RS-232 with baud rate up to 115200/sec, Supports wide range of IR frequency from 30~50kHz, HDMI with 3D, 4K2K support, HDMI & DVI Compliant, Supports CEC bypass, Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6/7 cable, 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232), Supports resolution up to 4K2K@50/60 & YUV_420, Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Hersteller-Nr.CH-1527TX
HerstellerCypress Technology

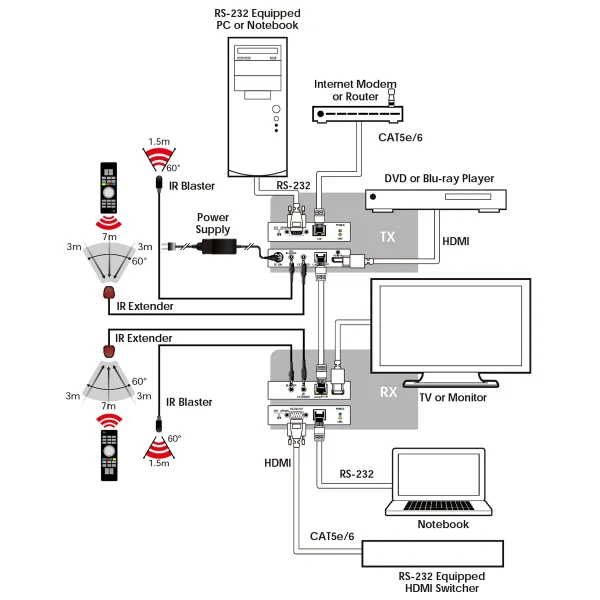

The HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Transmitter (PSE) can provide power to the Receiver(PD) allowing a greater flexibility in installations.

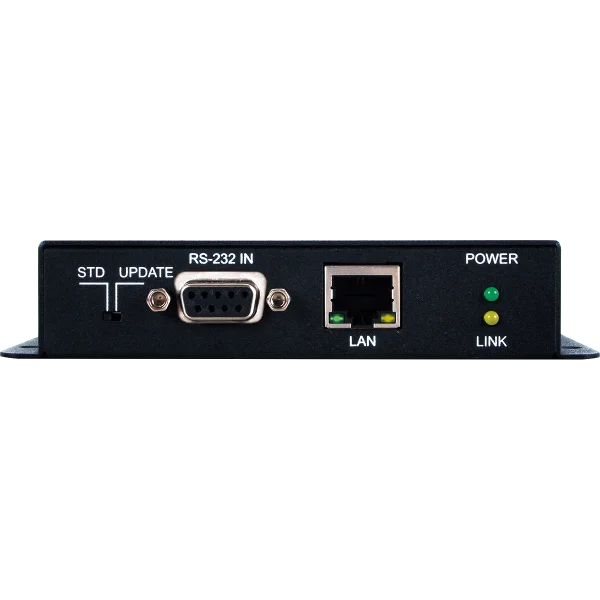

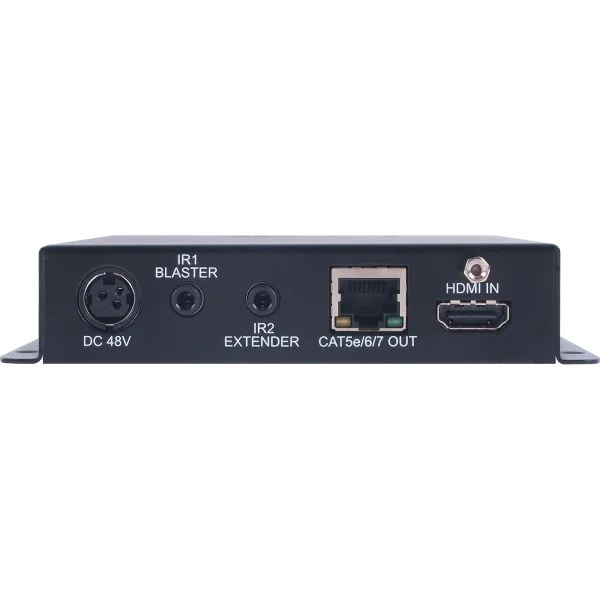

Interfaces
Input Port
  • 1 x HDMI(Type-A)
  • 1 x IR
  • Extender(3.5mm)
  • 1 x RS-232(DE-9)
  • 1 x LAN(RJ-45)
Output Port
  • 1x CAT5e/6/7(RJ-45)
  • 1 x IR Blaster(3.5mm)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • HDCP 2.X
Input Signal Types
  • 4K@60 YUV 4:2:0
Output Signal Type
  • 4K@60 YUV 4:2:0
Resolutions
Maximum Input HDMI
  • 4096x2160p@60 YUV 4:2:0
Maximum Output HDBaseT6/7
  • 4096x2160p@60 YUV 4:2:0
Power
Power Supply
  • 48 V/0.83 A DC (US/EU Standards, CE/FCC/UL
    certifi ed)
Power Consumption
  • 13.5w (Include Receiver)
Enclosure
Chassis Material
  • Metal (Steel)
Chassis Color
  • Black
Dimensions (W×H×D)
  • 108mm (W) x 25mm (H) x 108mm (D)
  • 108mm (W) x 29mm (H) x 116mm (D)
Weight
  • 370g
Field Firmware Update


Interface
  • PC Update, WebGUI
Ordering Information
Model No. Product Description
CH-1527TX
  • UHD HDMI over HDBaseT Transmitter with PoH
CH-1527RX
  • UHD HDMI over HDBaseT Receiver with PoH

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
