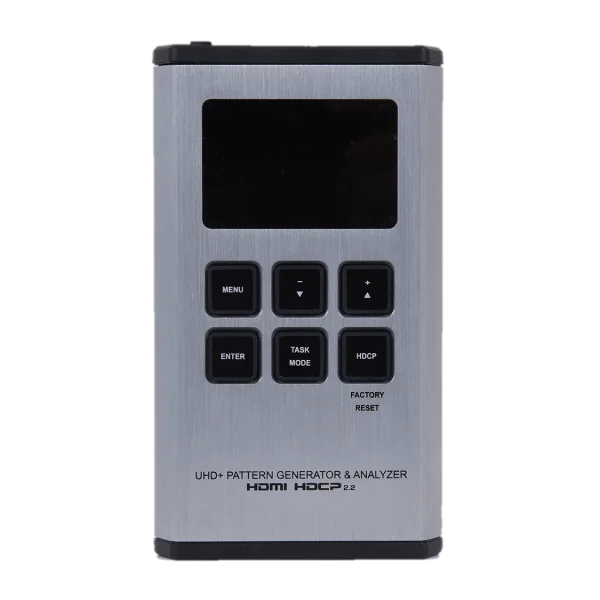

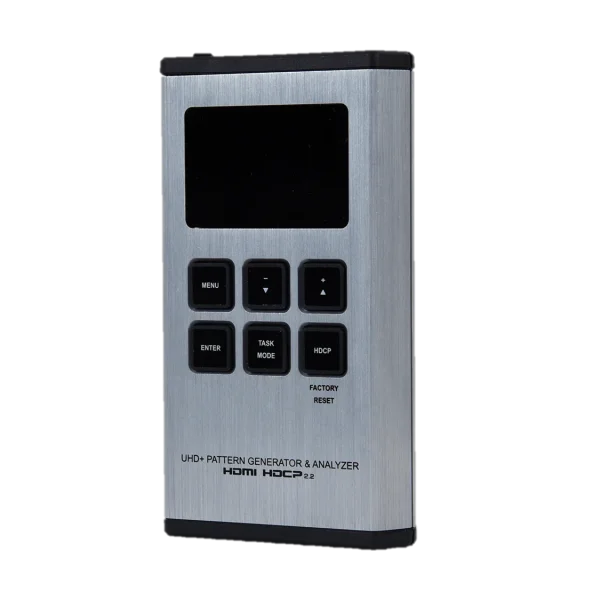

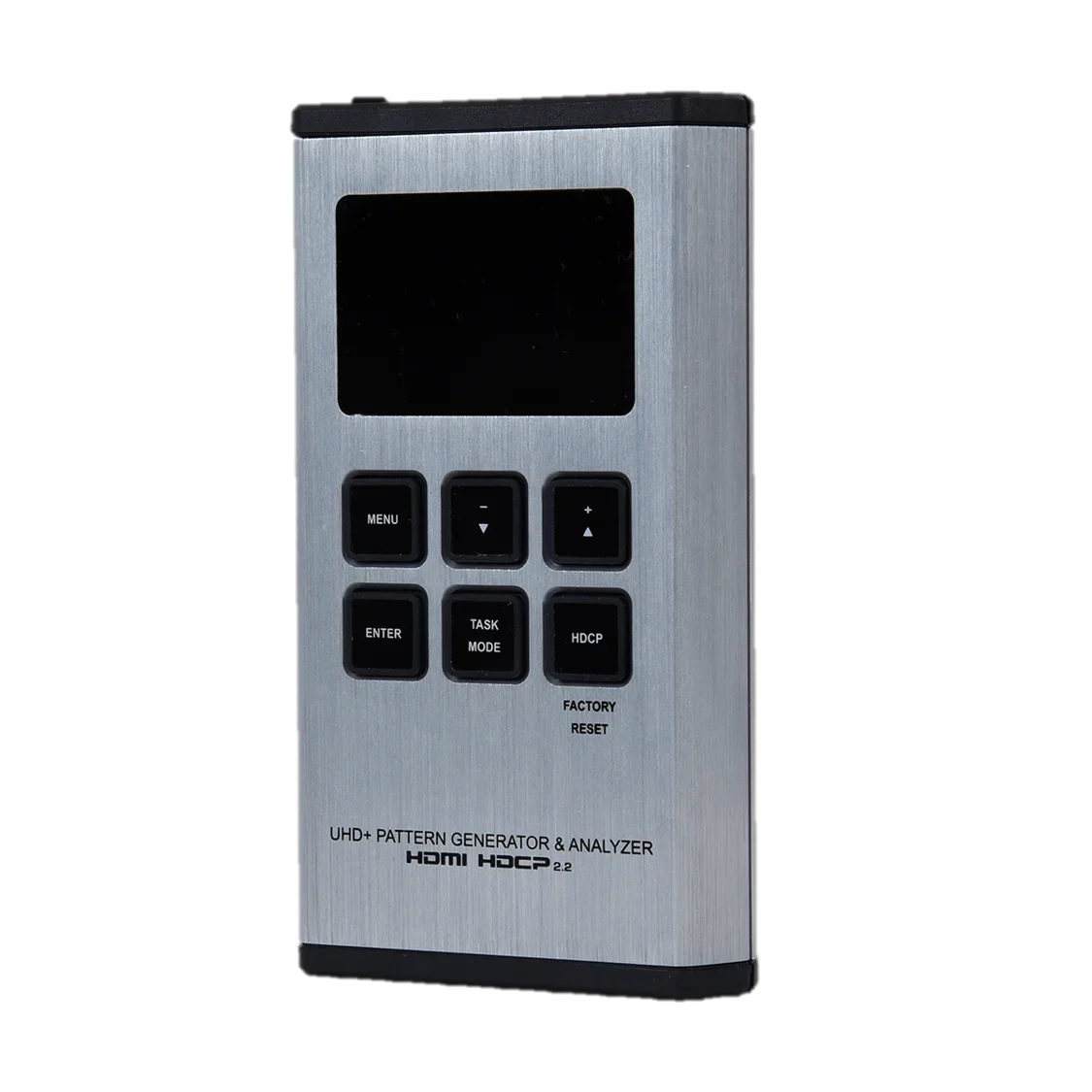

UHD+ HDMI Signal Generator & Analyzer (Portable Version)

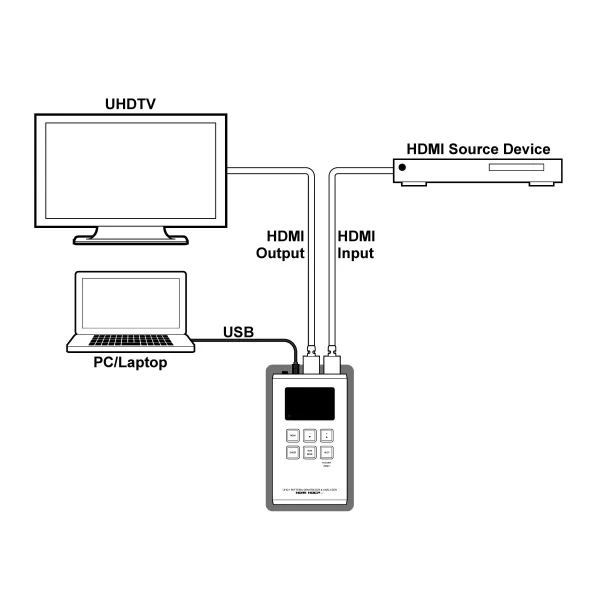

Analyzer mode supports source video, audio, timing and packet analysis while bypassing the signal to a connected display, 4K sources can be scaled to 1080p in Analyzer mode to support a wider range of displays when analyzing a high-bandwidth source, HDR bypass, analysis and generation support complying with the CEA standard HDR static metadata extensions CEA-861-F and CEA- 861.3, HDCP and SCDC monitoring functions, 23 selectable output resolutions available in Test Pattern mode, 17 selectable static test patterns in Test Pattern mode, HDMI 2.0 cable test function including tests for 5V, CEC and hot-plug detection support, Supports generation of up to 8 channels of LPCM audio with adjustable sinewave frequencies for each channel, Comprehensive EDID management, analysis and emulation support with 10 built-in default EDIDs and 10 user-definable EDIDs, Powered by a single Lithium-ion battery (not included) or an external USB power supply/power bank, OLED display with rapid updates of current status information, Supports optional Windows control software, Portable palm-sized design with easy to use front-panel controls, Supports AOC (Active Optical Cable) fiber optic HDMI cables (Hardware revision R3 or later only)
