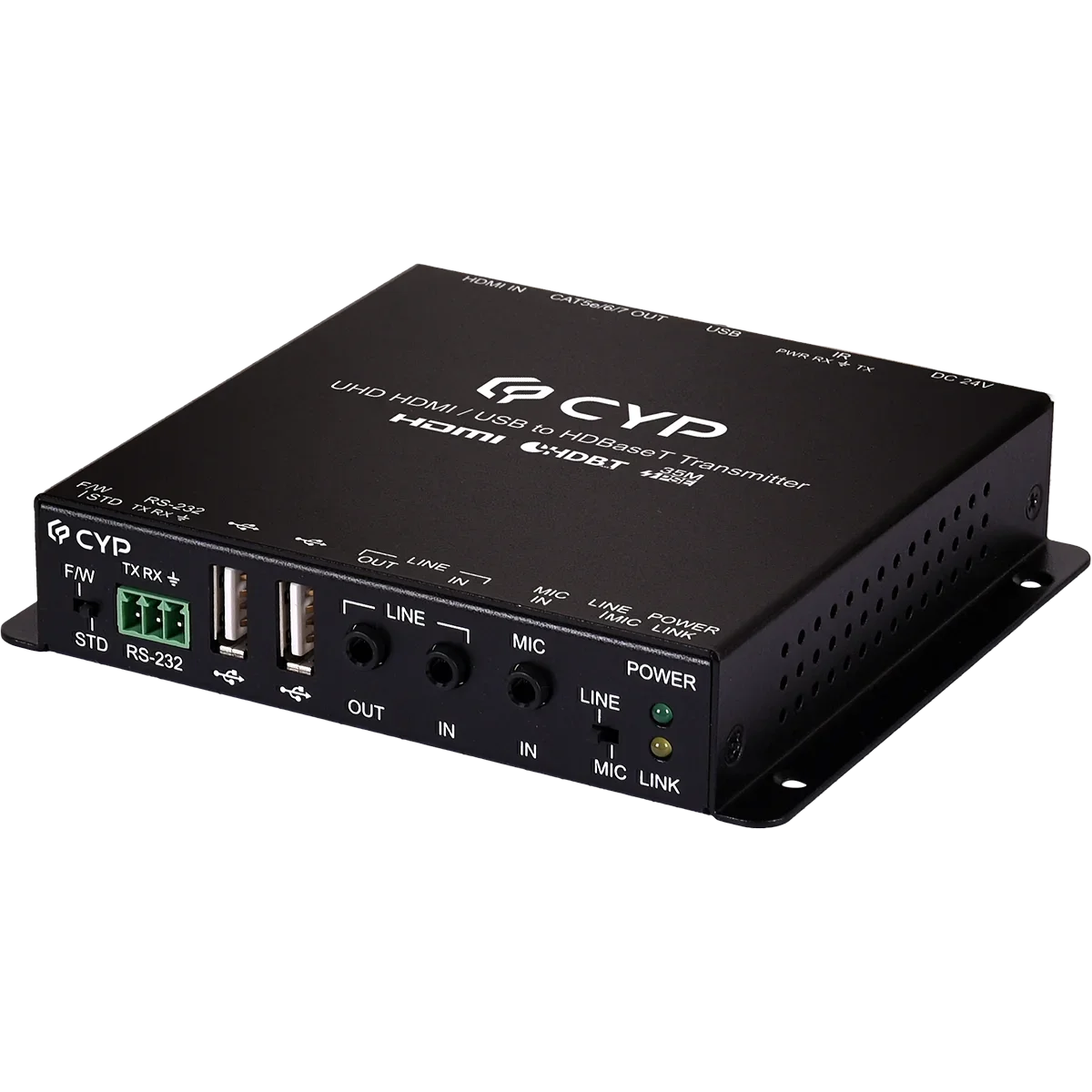

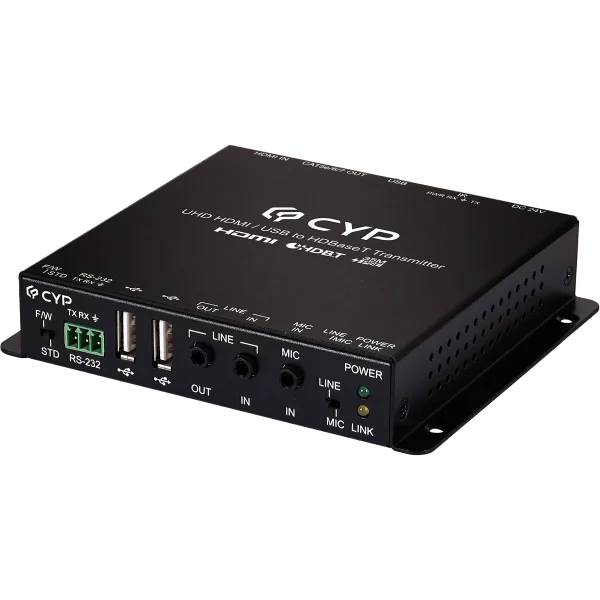

UHD HDMI/USB to HDBaseT Transmitter (4K@60 420 up to 35M)

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI, HDBaseT 2.0 compatible , HDMI 2.0 and DVI 1.0 compatible , HDCP 2.2 and HDCP 1.x compliant , Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m, Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit) , Supports 16-bit Deep Color up to 1080p@60Hz , Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Hersteller-Nr.	CH-1610TXPL
Hersteller	Cypress Technology

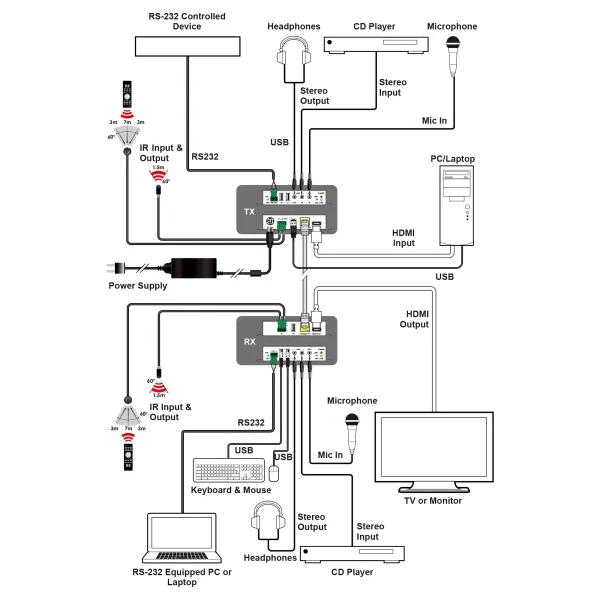

The HDMI over single CAT5e/6/7 Transmitter set can send uncompressed audio/video over a single run of CAT5e/6/7 cable at a distance up to 35 meter. Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.

Interfaces

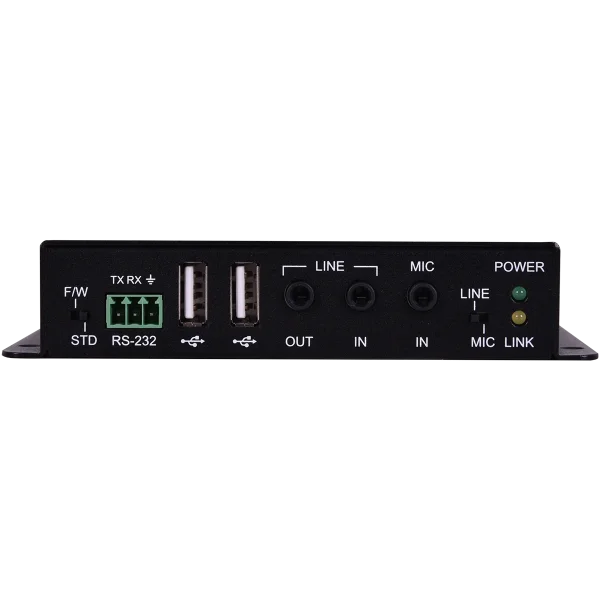

Input Port	1× HDMI (Type-A) 1 x Stereo Audio input 1 x Microphone input

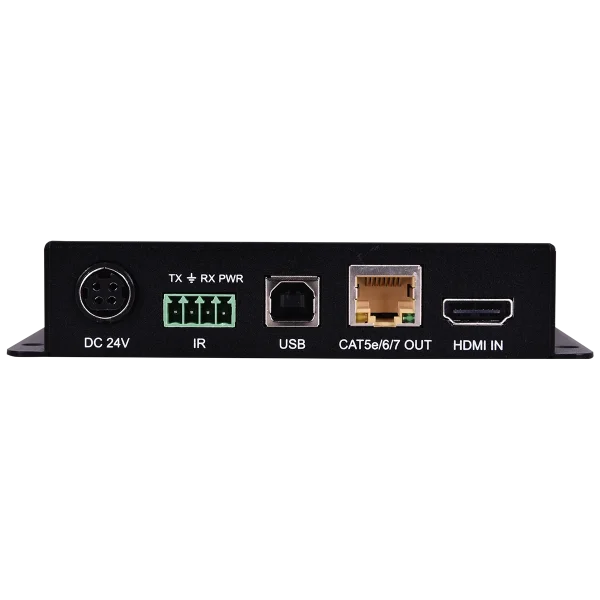

Output Port	1 x HDBaseT (RJ-45) 1 x Stereo Audio output
Pass-through Port	1× IR In/Out (4-pin terminal block) 1x RS-232 (3-pin terminal block) 2x USB 2.0(Type-A)
Pass-through/Control Port	1x USB 2.0(Type-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	4K@60, YUV 4:2:0
Output Signal Type	4K@60, YUV 4:2:0
		Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	HDBaseT6/7	4096x2160p@60 YUV 4:2:0

Audio
HDMI Input 1,2	LPCM (2 Channels, 48KHz), Bitstream
HDMI Output	LPCM (2 Channels, 48KHz), Bitstream

Power
Power Supply	24V/2.7A DC
Power Consumption	TBD

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×113.6mm [All Inclusive]
Weight	410g
