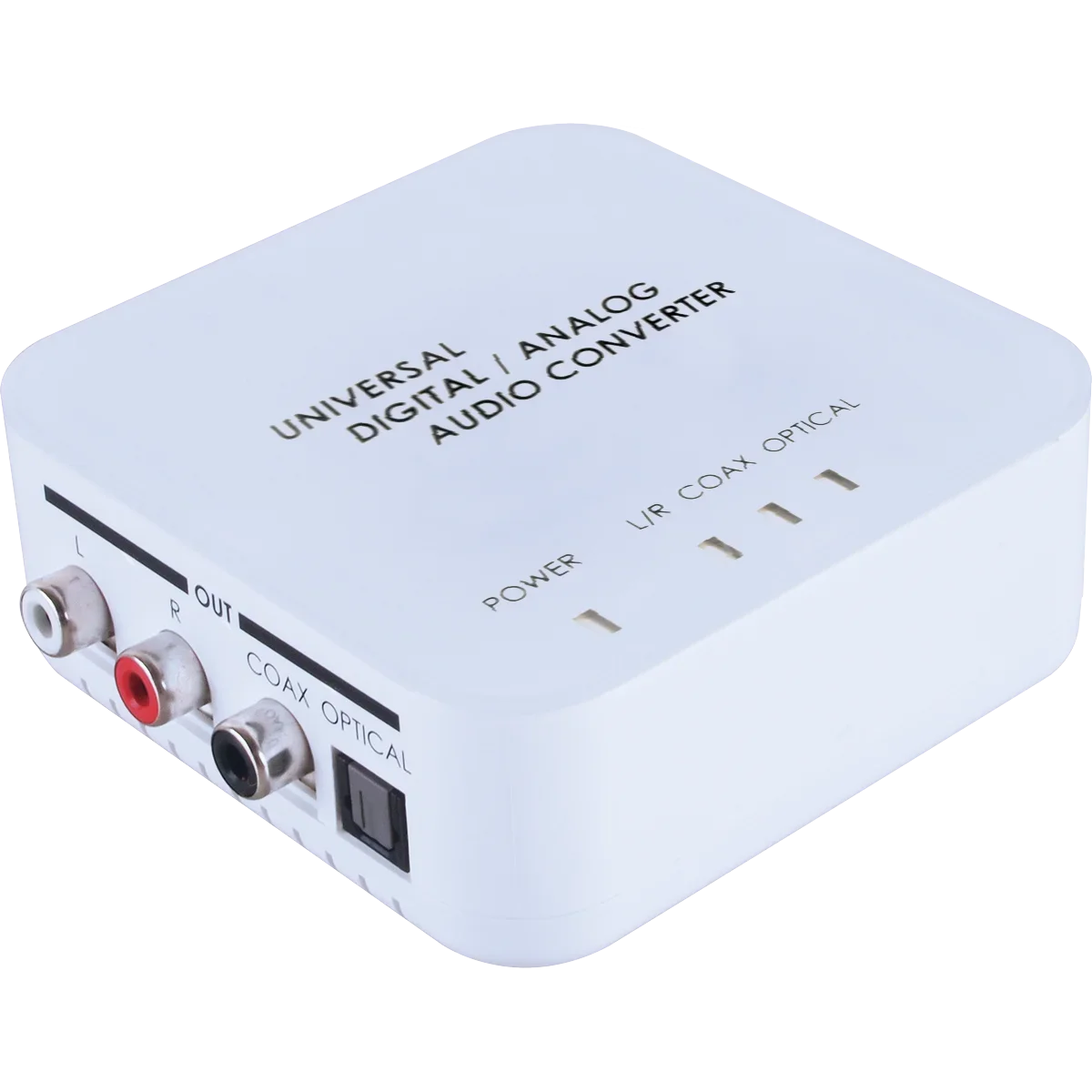

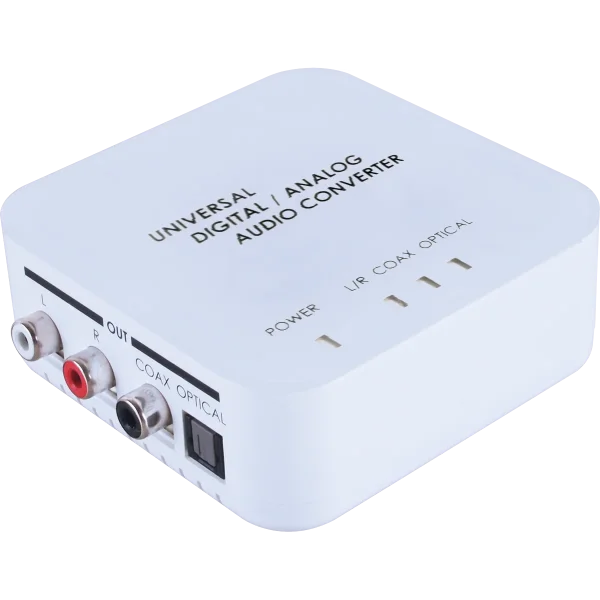

Universal Digital/Analog Audio Converter

Integrated digital interpolator filter and Digital-to-Analog Converter (DAC), Integrated Analog-to-Digital Converter (ADC), Supports sampling rates of 32, 44.1, 48 or 96 kHz , Provides electromagnetic-noise-free transmission, Easy to install and operate, Compact and elegant design

Hersteller-Nr.	DCT-9
Hersteller	Cypress Technology

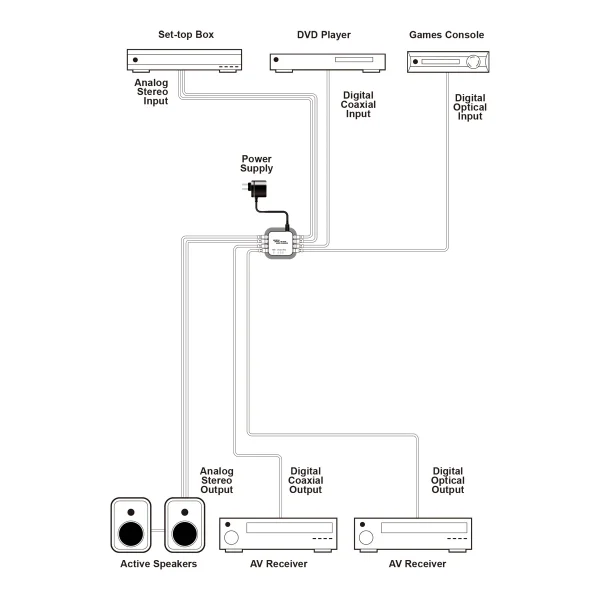

The Universal Digital/Analog Audio Converter allows users to convert Optical, Coaxial and Analog audio signals. The unit can convert between analog and digital formats and vice versa and can output simultaneously to all outputs (depending on the audio format) allowing it to act as an audio distributor.

Interfaces

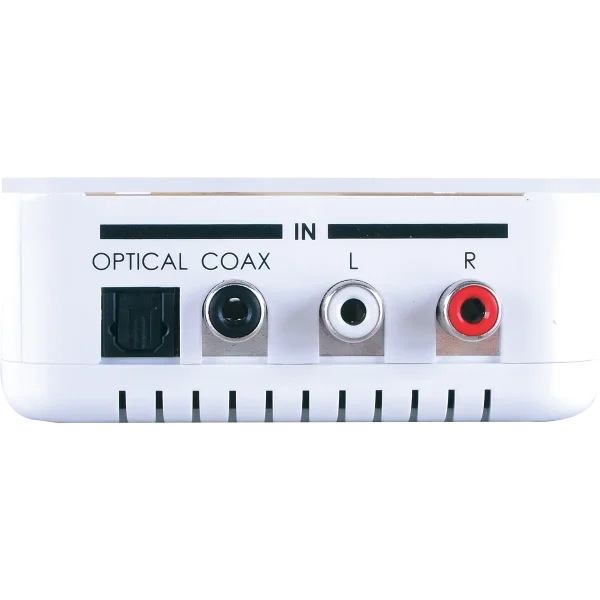

Input Port	1 TOSLINK (S/PDIF Audio) 1 Coaxial(female) 1 Analog Stereo (RCA connectors)

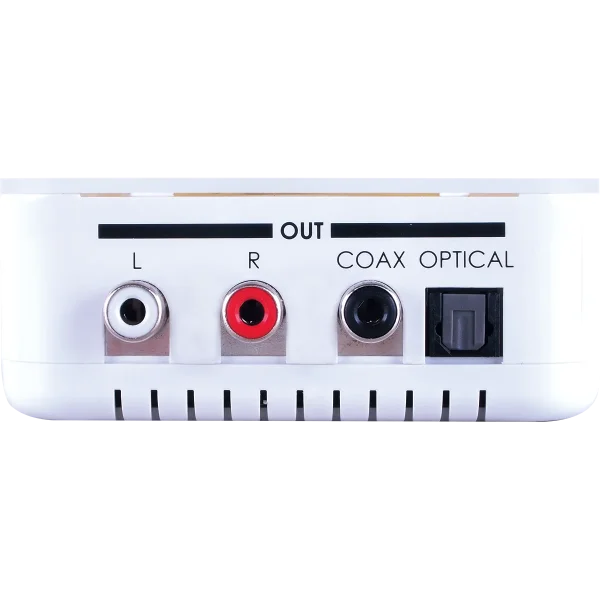

Output Port	1 TOSLINK (S/PDIF Audio) 1 Coaxial(female) 1 Analog Stereo (RCA connectors)

Power

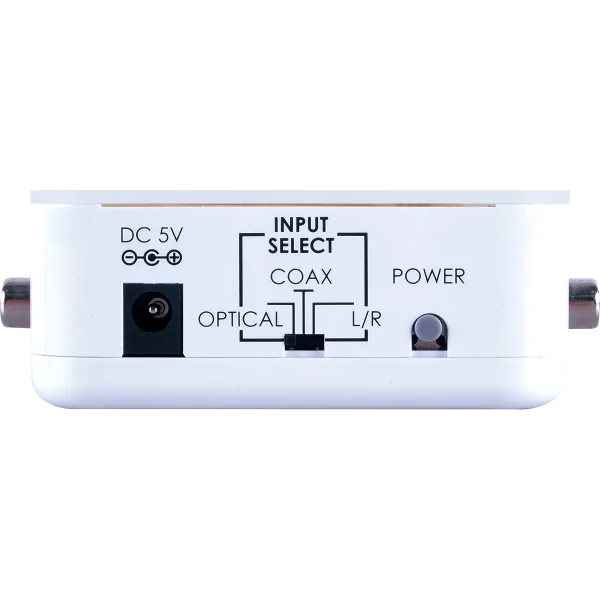

Power Supply	5V/1.2A DC
Power Consumption	1W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	97 mm × 35 mm × 85 mm
Weight	120g

Ordering Information
Model No.	Product Description
DCT-9	Universal Digital/Analog Audio Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
