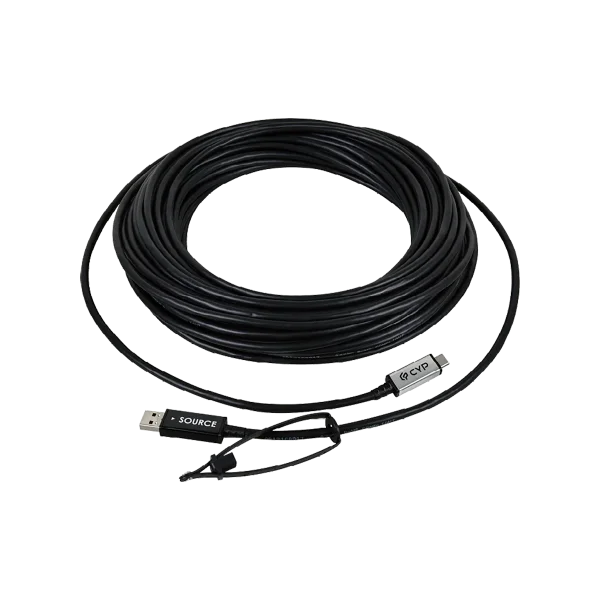

USB3.2 Gen2 Type-A to Type-C Active Optical Cable

Support USB3.2 Gen 2 10Gbps bandwidth, Transfer data with 10Gbps speed for up to 40 meters, Comply with USB2.0 data rate, Optional Pigtail to supply 4.5W external power

Hersteller-Nr.	CBL-FU400
Hersteller	Cypress Technology

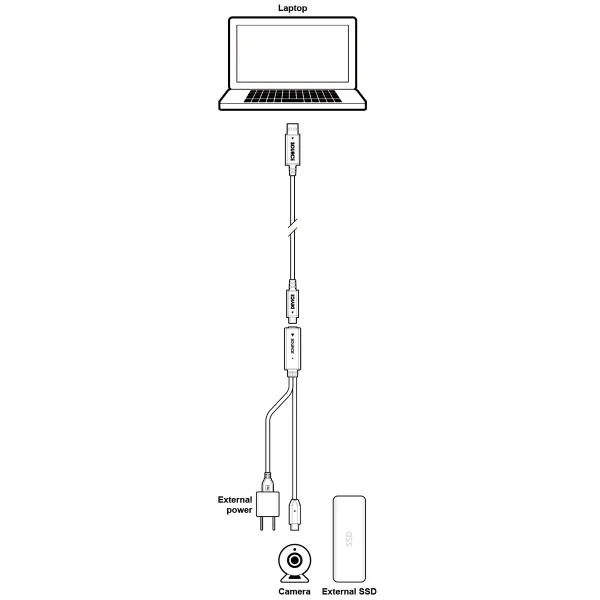

This active optical cable can transfer data with 10Gbps speed for up to 40 meters, which is perfect for USB devices connection and USB extension. When connecting with the USB-C camera, it transfers 4K@30hz images in data format. 1W power can be delivered to connected device over the cable under 20 meters. Cables that are longer than 20 meters, connected devices should have external power. There is an optional Pigtail*, for the device to be powered 4.5W externally.

*Note: When using a Pigtail, the data transfer speed will decrease to 5Gbps.

Signal Support
USB Standards	USB3.2
Data Rate	10Gbps
Connector	USB Type-A to Type-C Connector

Physical Properties
Op. Temp.	0°C to 50°C
Humidity	0% to 85% RH
Bending Radius	60mm
Pulling Force	4kg

ORDERING INFORMATION

Model No.	Product Description
CBL-FU400-020	USB3.2 Gen2 Type-A to Type-C Active Optical Cable, 20 meters
CBL-FU400-040	USB3.2 Gen2 Type-A to Type-C Active Optical Cable, 40 meters
CBL-PTL	USB3.2 Gen1 5Gbps pigtail for external power
