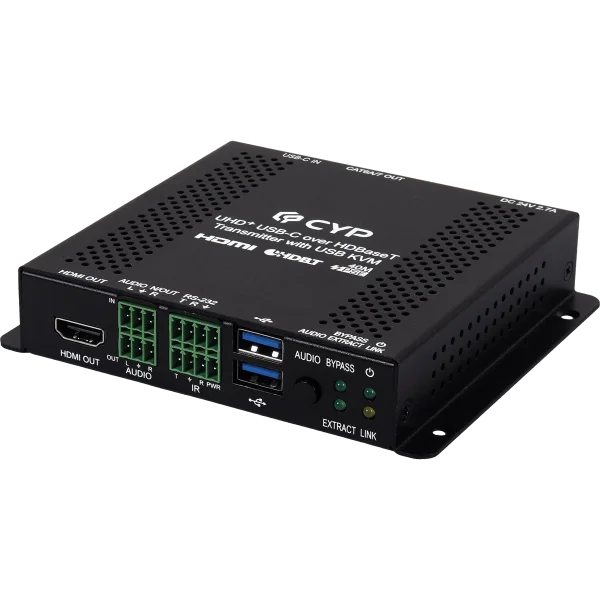

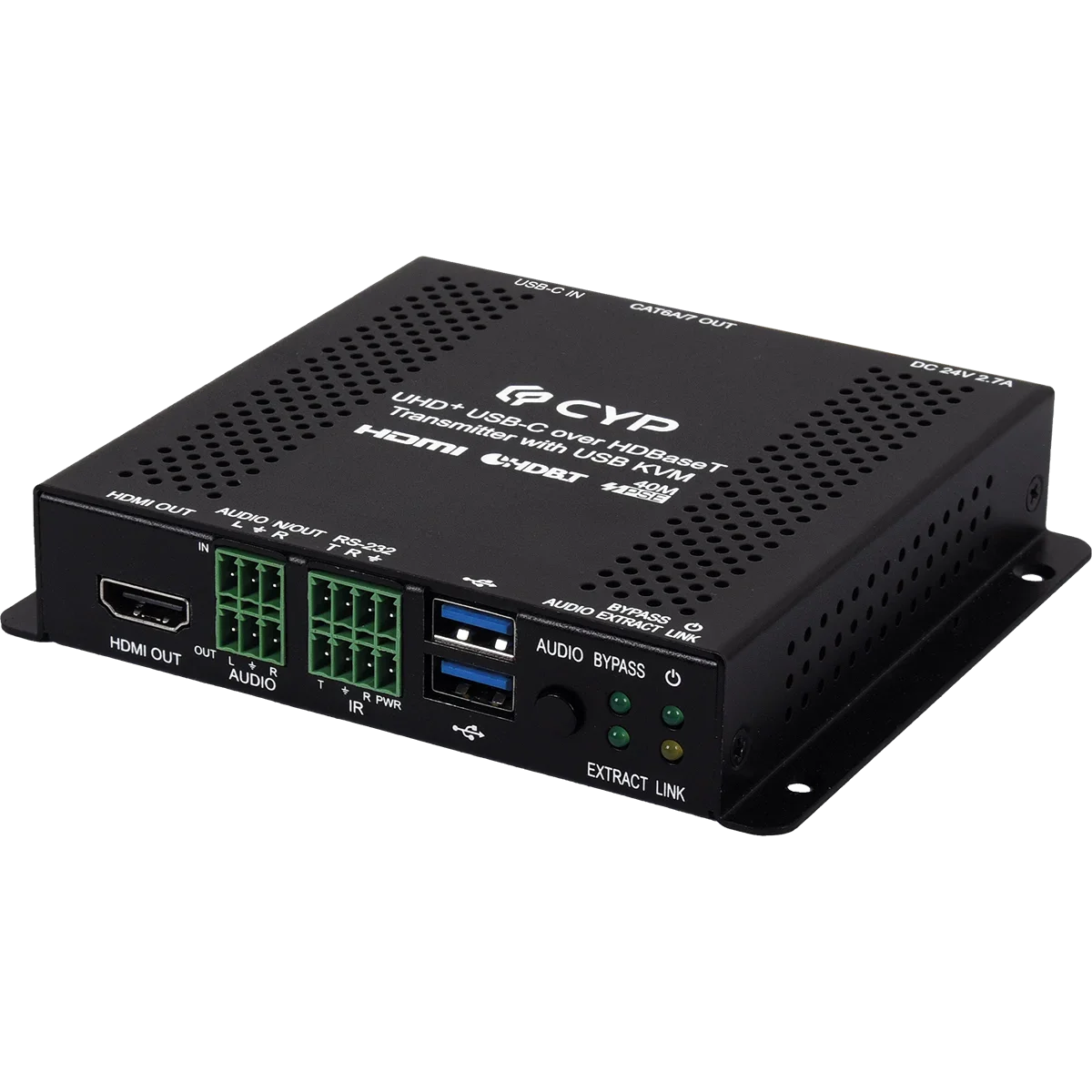

VEX-E2502T

HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant, HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0), Supports Deep Color input and output up to 12-bit, Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output, 2 USB 3.0 Type-A device ports and 1 USB-C host port, Selectable HDMI audio extraction/analog audio bypass functionality, Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.

Hersteller-Nr.	VEX-E2502T
Hersteller	Cypress Technology

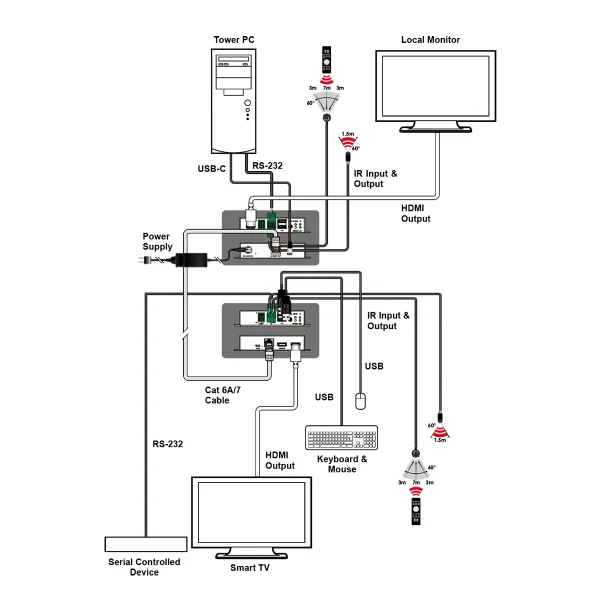

This 4K60 HDMI over HDBaseT transmitter and receiver pair uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including bi-directional IR, RS-232, USB (3.0 locally, 2.0 remotely) and Gigabit Ethernet. This Transmitter is ideal for use in any video extension scenario, but they excel when latency-free, uncompressed, high resolution video is critical, such as medical installations, live conferences, and education.

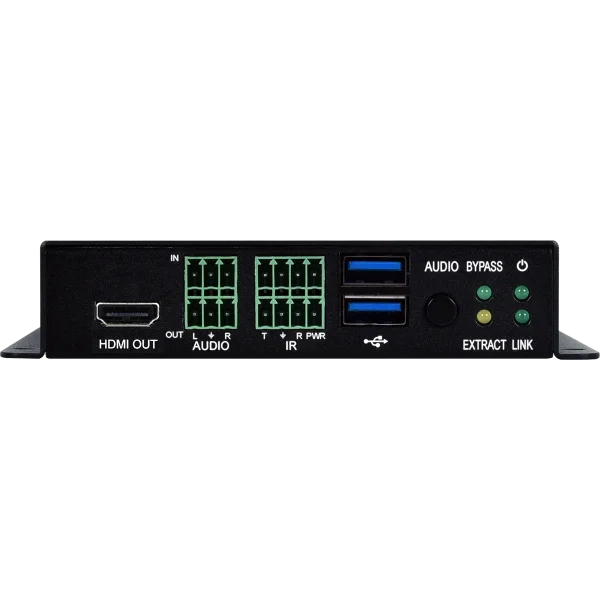

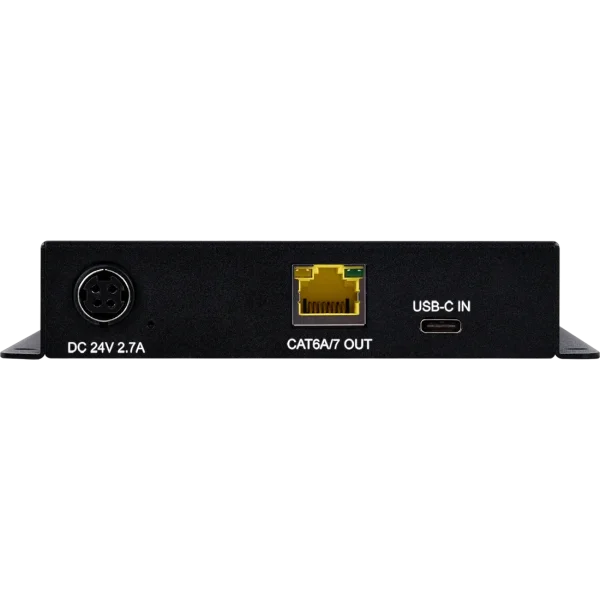

Interfaces
Output Port	1×HDMI (Type-A) 1xHDBaseT(RJ-45)
Pass-through Port	1x Stereo Audio input and output (3-pin2 Term. Block) 1×IR In/Out and RS-232 (4-pin2 Term. Block) 2×USB 3.0 (Type-A)
Pass-through/ Service Port	1×USB-C

Video
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Input Signal Type	HDMI 4K@60 8bit RGB 4:4:4
Output Signal Type	HDMI 4K@60 8bit RGB 4:4:4 HDBT 4K@60 8bit RGB 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60
	HDBT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60
	HDBT	4096×2160p@60

Audio
HDMI	LPCM (8 Channels), Bitstream, HD Bitstream
HDBT	LPCM (8 Channels), Bitstream, HD Bitstream
Analog Out	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	24V/ 2.7A DC
Power Consumption	18.5W

Enclosure
Chassis Material	Metal(Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×112.5mm [All Inclusive]
Weight	385g

Field Firmware Update

USB stick Update

ORDERING INFORMATION

Model No.	Product Description
VEX-E1501T	4K60 HDMI over HDBaseT Transmitter
VEX-E1501R	4K60 HDMI over HDBaseT Receiver
VEX-E2501T	4K60 HDMI over HDBaseT Transmitter with USB KVM
VEX-E2501R	4K60 HDMI over HDBaseT Receiver with USB KVM
VEX-E2502T	4K60 USB-C over HDBaseT Transmitter with USB KVM
VEX-E4501T	4K60 HDMI over HDBaseT Transmitter with USB KVM
VEX-E4501R	4K60 HDMI over HDBaseT Receiver with USB KVM
VEX-E4701TR	4K60 HDMI over HDBaseT Transceiver with USB KVM
