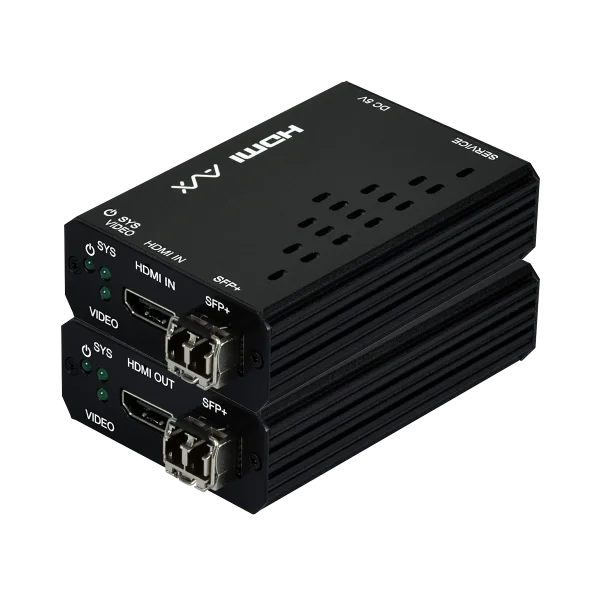

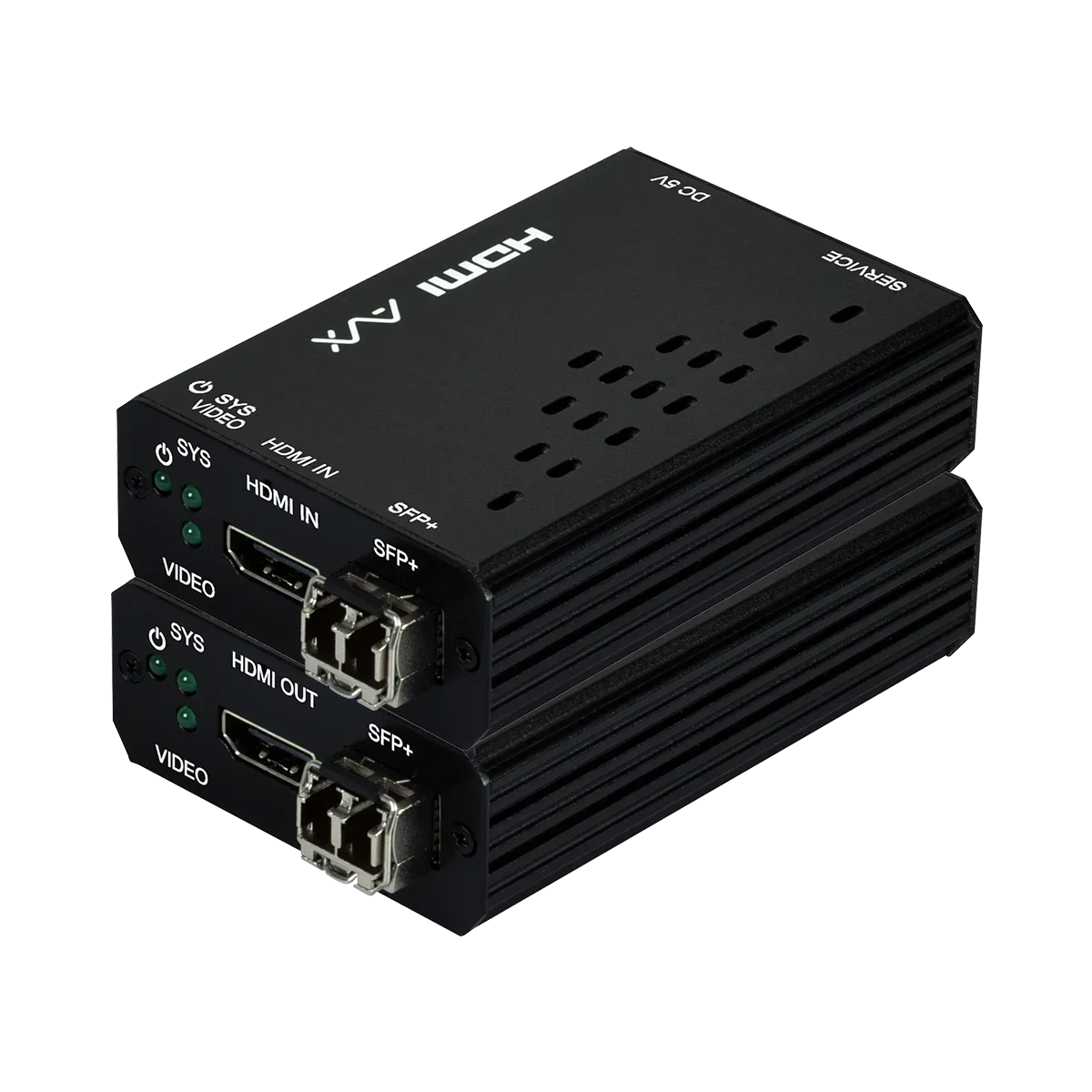

VEX-X1102T-B0F&VEX-X1102R-B0F
Point to point extension of audio, video and control signals, Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2, Transmitter and Receiver design., Extension up to 30km (maximum distance depends on the SFP+ module and type of fiber used), Supports pass-through of 10/12-bit HDR sources, Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector
| Hersteller-Nr. | VEX-X1102T-B0F&VEX-X1102R-B0F |
| Hersteller | Cypress Technology |

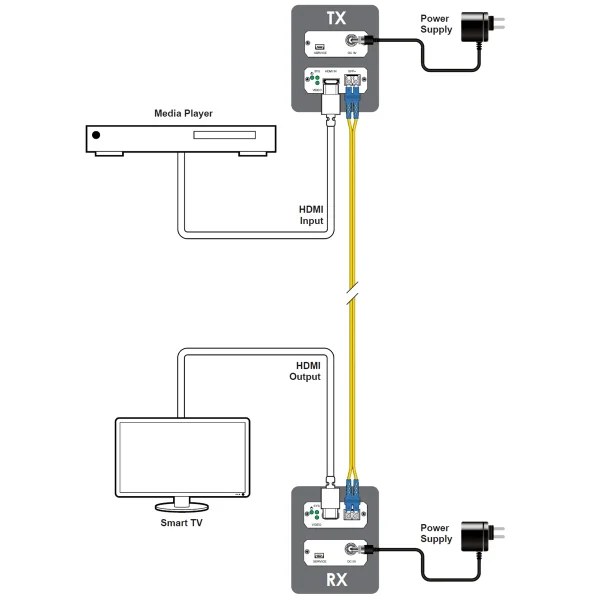

The end to end Extenders are designed for high-quality, AV extension with minimum latency through 10 Gigabit IP transmit over SFP+ Fiber cable. Small and compact size of Transmitter and Receiver design, enhancing the flexibility of any installation. With ultra-light compression scheme (lossless for most content) to extending 4K audio/video streams and data under 0.1 milliseconds of matrix switch-like end to end transit. Supports all HDMI 2.0 formats pass-through including multichannel PCM, Dolby True HD and DTS HD master audio.

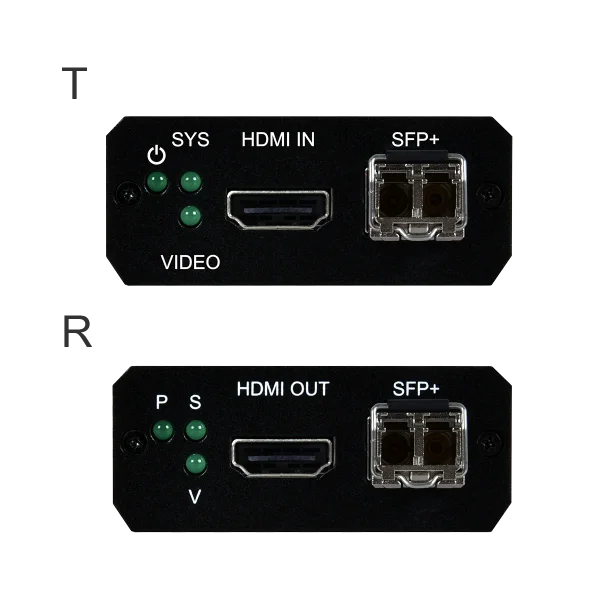

Interfaces |
|||
|
Input Port |
1 HDMI (Type A) |
|
|
|
Output Port |
1 10GbE LAN (SFP+) |
|
|
|

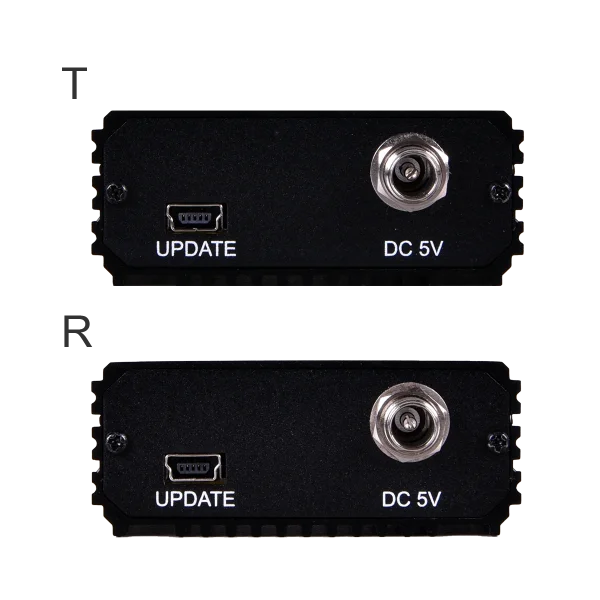

Bi-directional Port |
|
|
|
|
Control I/O |
1 USB (Mini-B) |
|
|
|
Video |
|
|
|
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
|
HDCP Compliance |
2.2 |
|
|
|
Input Signal Types |
4K@60 YUV 4:4:4 |
|
|
|
Output Signal Types |
4K@60 YUV 4:4:4 |
|
|
|
|
|
Resolutions |
|
|
Maximum Input |
HDMI |
4096×2160p@60 YUV 4:4:4 |
|
|
Maximum Output |
SFP+ (Streaming) |
4096×2160p@60 YUV 4:4:4 |
|
|
Audio |
|
|
|
|
HDMI |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
||
|
Power |
|
|
|
|
Power Supply |
5V/2.6A DC (Locking) |
|
|
|
Power Consumption |
TBD |
|
|
|
Enclosure |
|
|
|
|
Chassis Material |
Metal (Steel) |
|
|
|
Chassis Color |
Black |
|
|
|
Dimensions (W×H×D) |
57mm×20.6mm×87mm [Case Only] 60mm×20.6mm×87mm [All Inclusive] |
||
|
Weight |
139g |
|
|
Interfaces |
|
|
|
|
Input Port |
1 10GbE LAN (SFP+) |
||
|
Output Port |
1 HDMI (Type A) |
|
|
|
Bi-directional Port |
|
|
|
|
Control I/O |
1 USB (Mini-B) |
|
|
|
Video |
|
|
|
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
|
HDCP Compliance |
2.2 |
|
|
|
Input Signal Types |
4K@60 YUV 4:4:4 |
|
|
|
Output Signal Types |
4K@60 YUV 4:4:4 |
|
|
|
|
|
Resolutions |
|
|
Maximum Input |
LAN (Streaming) |
4096×2160p@60 YUV 4:4:4 |
|
|
Maximum Output |
HDMI |
4096×2160p@60 YUV 4:4:4 |
|
|
Audio |
|
|
|
|
HDMI |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
||
|
Power |
|
|
|
|
Power Supply |
5V/2.6A DC (Locking) |
||
|
Power Consumption |
TBD |
|
|
|
Enclosure |
|
|
|
|
Chassis Material |
Metal (Steel) |
|
|
|
Chassis Color |
Black |
|
|
|
Dimensions (W×H×D) |
57mm×20.6mm×87mm [Case Only] 60mm×20.6mm×87mm [All Inclusive] |
||
|
Weight |
139g |
|
|
|
Field Firmware Update |
|
|
|
|
PC |
|||
Keine Maßangaben verfügbar.
