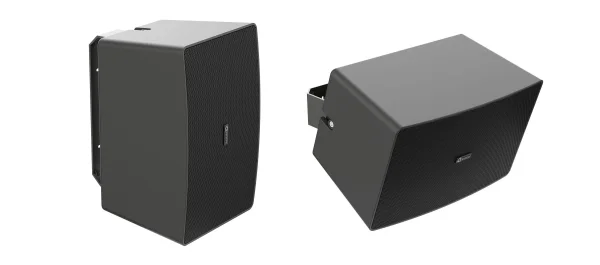

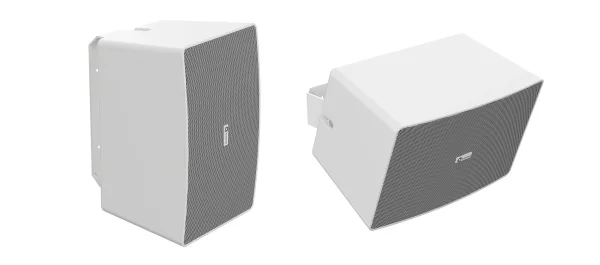

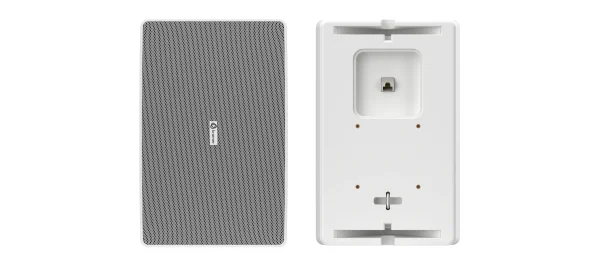

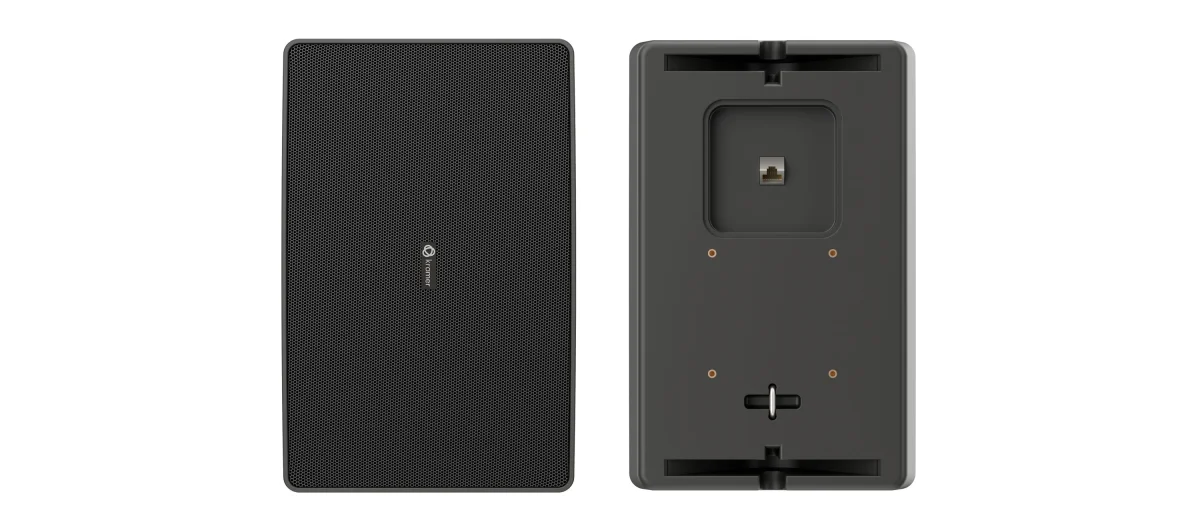

WM-8D – 8” two–way wall mounted PoE powered Dante speaker

Note: Download the Kramer Speaker Manager (.exe) and installation instructions from the Resources tab.

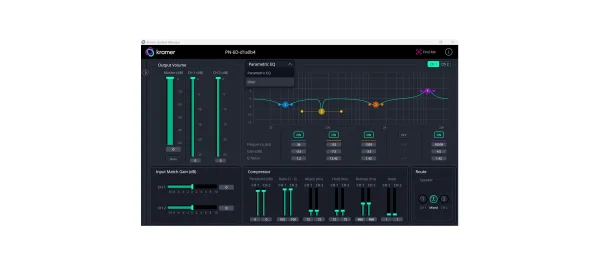

Kramer’s WM−8D is a high−performance 8” wall−mounted PoE−powered Dante speaker designed to deliver rich, full−bodied sound for premium indoor environments such as boardrooms, auditoriums, restaurants, and premium meeting spaces. Featuring a built−in amplifier, DSP, and mixer, the WM−8D supports two−channel mixing and advanced sound shaping with parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “find me” tone − applicable via Kramer’s intuitive Speaker Utility software.
Designed with the system integrator in mind, the WM−8D comes with Kramer’s EasyMount bracket for flexible vertical, horizontal, or corner installation, and includes standard 75mm VESA mount threads for additional mounting options. Available in black or white, the WM−8D combines exceptional audio performance with a clean, professional design and integrates smoothly with Kramer Control or third−party control systems via its robust API.

• Exceptional sound performance
• Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
• Supports PoE++/PoE+/PoE (auto–negotiate)
• Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
• Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
• Power handling: 10W continuous / 30W peak
• Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
  Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL
• Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
  FCC/IC, BIS, RCM
  RoHS, REACH, WEEE
• Industrial design: — EasyMount bracket for flexible wall installation in vertical, horizontal, or corner orientations, and features standard 75mm VESA mount threads for expanded mounting options, available in black & white colors, removable logo
• Eco–friendly mono–material packaging
• The WM–8D wall–mounted Speaker is a high–end solution for indoor applications delivering high–performance high–quality sound in professional Dante networked audio installations.
• Included in the box: — 1 speaker (single unit), 2 speakers are packed in a single master box
  1 EasyMount mounting brackets (1 per speaker) + 2 bracket screws
  L–shaped Allen key (M6)
  Quick Start Guide
