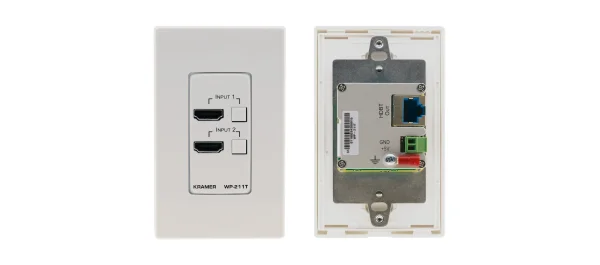

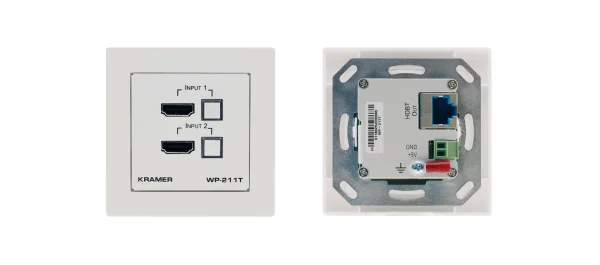

WP-211T/US(W/B) – US-D–size Wall–Plate Switcher/Transmitter with White & Black Decora® Design Frame Sets

WP−211T ist ein leistungsstarker Wallplate−Automatikschalter für 4K−, HDBaseT−, HDMI 1.4− und HDCP 2.2−Videosignale. Er bietet Prioritäts− und Last−Connected−Umschaltoptionen und schaltet automatisch entsprechend dem ausgewählten Schaltschema basierend auf der aktiven Videosignal−Erkennung um. WP−211T kann durch PoE über die HDBaseT−Verbindung mit Strom versorgt werden.

• Plug & Play Auto Switcher — Wall or podium mountable switcher, easily accessible for plugging user device to any of its HDMI input connections, it auto–plays switched source signal on connected display according to user–configured preferences.
• Automatic Input Selection — Plug & play auto switching based on last connected input or manual selection.
• High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing long–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market–available HDBaseT–compliant extension product.
• HDMI Signal Switching — HDMI 2.0 and HDCP 2.2 compliant, it supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D.
• Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Reliable PoE (Power over Ethernet) Powering — Auto–senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.

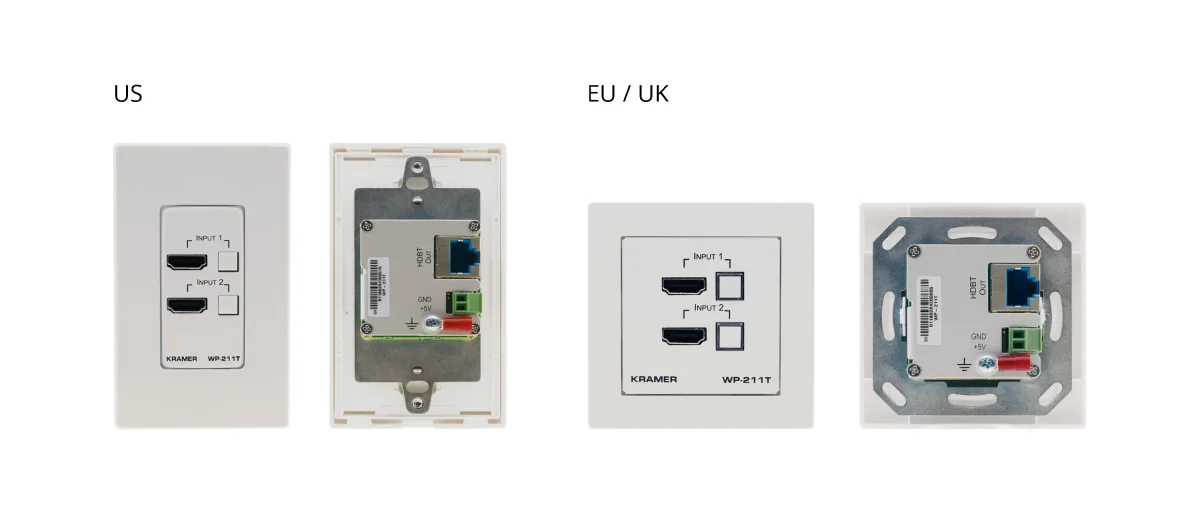

• Easy Installation — Compactly fits into standard US, EU and UK 1–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
