WPS-HP201KIT

Supports video and audio signals transmission., Free from installing driver or software., Compatible devices: laptops and PCs that have full-featured USB-C port., Video conference connection via Pod is available in Teams, Zoom and Google Meet

Hersteller-Nr.	WPS-HP201KIT
Hersteller	Cypress Technology

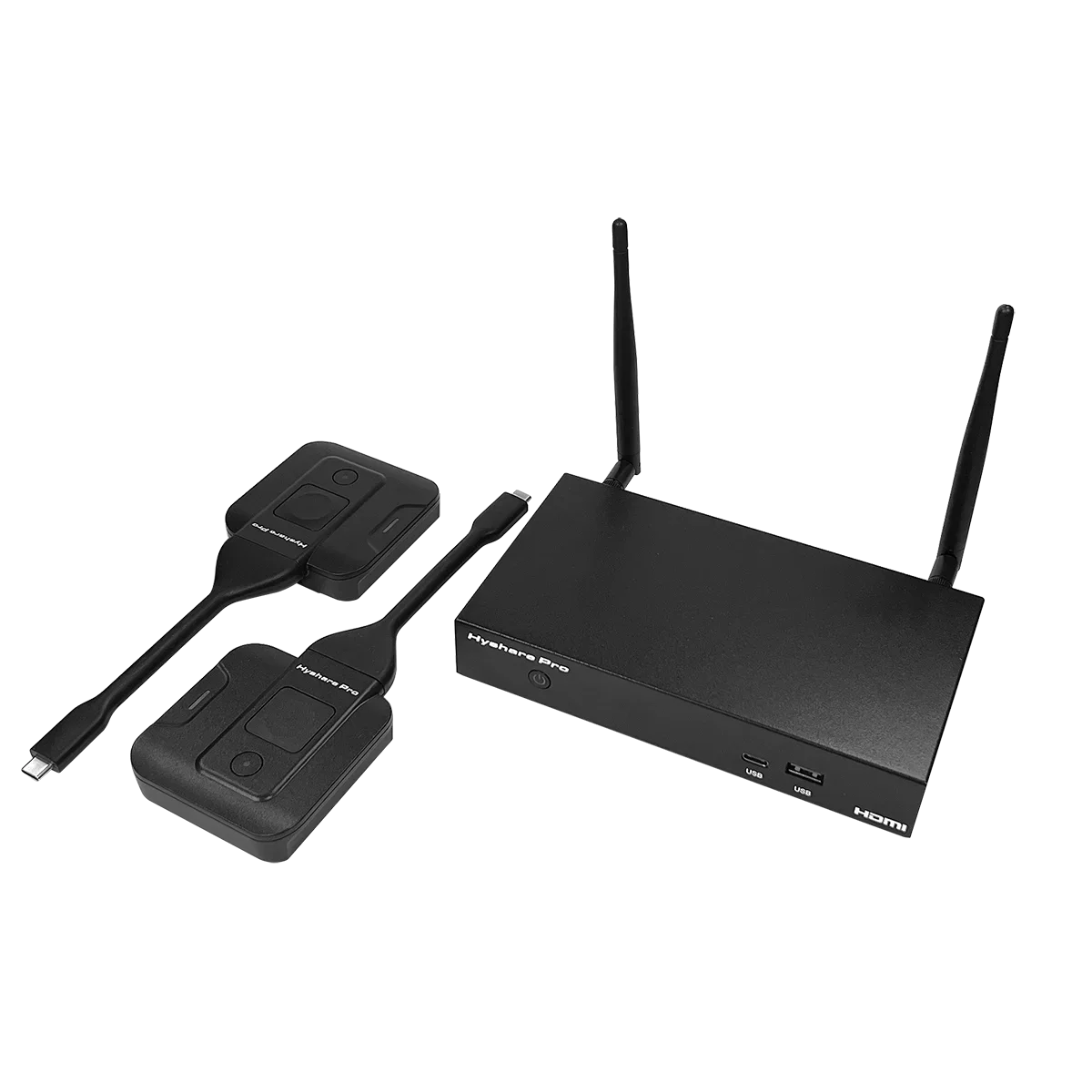

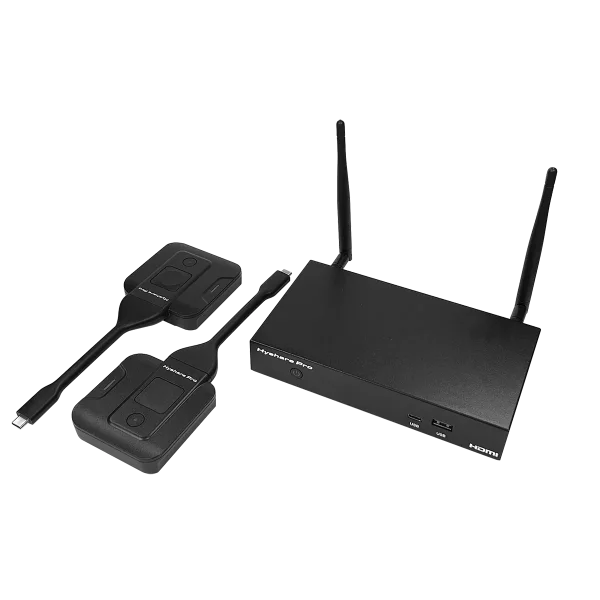

This is a product bundle that includes two Hyshare Pro Pod wireless transmitters and one Hyshare Pro wireless presentation system.

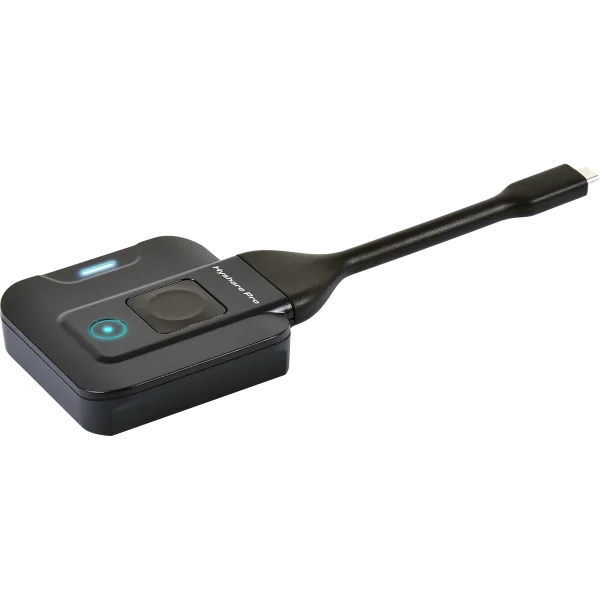

Hyshare Pro Pod is an USB-C transmitter to Hyshare Pro station. It can transmit video and audio signals wirelessly, which enables users to join a meeting instantly. Plug in a Pod and everyone can share content wirelessly without installing any App. The reach distance is up to 10 meters, letting users to be free from messy cables.

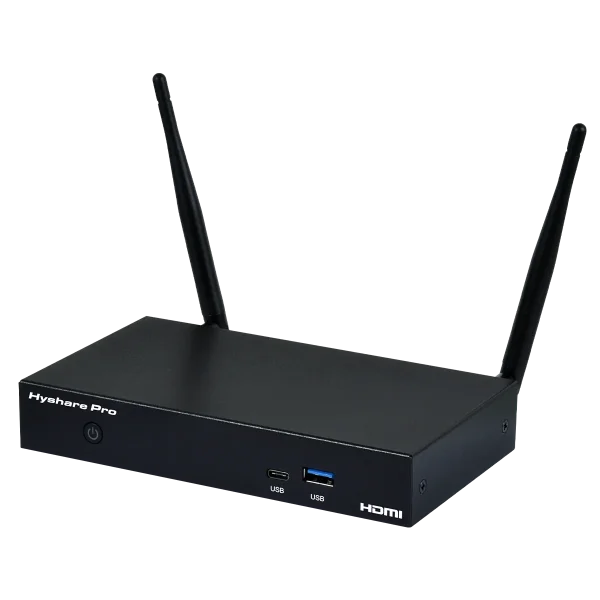

WPS-HP201

Interfaces
Output Port	1 HDMI 1 VGA 1 Analog Stereo (3.5mm)
Bi-directional Port	1 GbE LAN (RJ-45)
Control I/O	1 USB2.0 (Type-A) 1 USB3.0 (Type-A) 1 USB3.0 (Type-C)

Video
HDMI Compliance	HDMI 1.4
Input Signal Type	IEEE 802.11ac 2.4/5GHz
Output Signal Type	3840x2160p@30Hz
		Resolutions
Maximum Output	HDMI Only	3840x2160p@30Hz
	HDMI+VGA	1920x1080p@60Hz

Power
Power Supply	12V/2A DC
Power Consumption	24W Max.

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	170 x 94.4 x 131 mm (With antenna)
Weight	493g

ORDERING INFORMATION
Model No.	Product Description
WPS-HP201	Hyshare Pro Wireless Presentation System

WPS-HP201T

Video
Interface	Resolutions
Maximum Input	USB-C Alt Mode	1920×1080p@60

Audio
USB-C Alt mode	LPCM (8 Channels)

USB
Type	TypeC
Generation	USB3.2 Gen1

Wireless transmission
Wi-Fi Band	2.4GHz and 5GHz (DFS channels not supported)
Wireless transmission protocol	IEEE 802.11 g/n/ac
Encryption protocol	WEP, WPA-PSK, WPA2-PSK

Power
Power Rating	5V 900mA

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	193mm×68mm×17.6mm
Weight	96g

Field Firmware Update

Hyshare Pro station and Pod Utility

ORDERING INFORMATION

Model No.	Product Description
WPS-HP201T	Hyshare Pro Pod Wireless Transmitter
WPS-HP201	Hyshare Pro Wireless Presentation System
WPS-HP201KIT	Hyshare Pro Wireless Presentation Kit (2 transmitters + 1 receiver)
SDM-W201R	Hyshare Pro Wireless Receiver Module
CPLUS-V32SDM	UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
