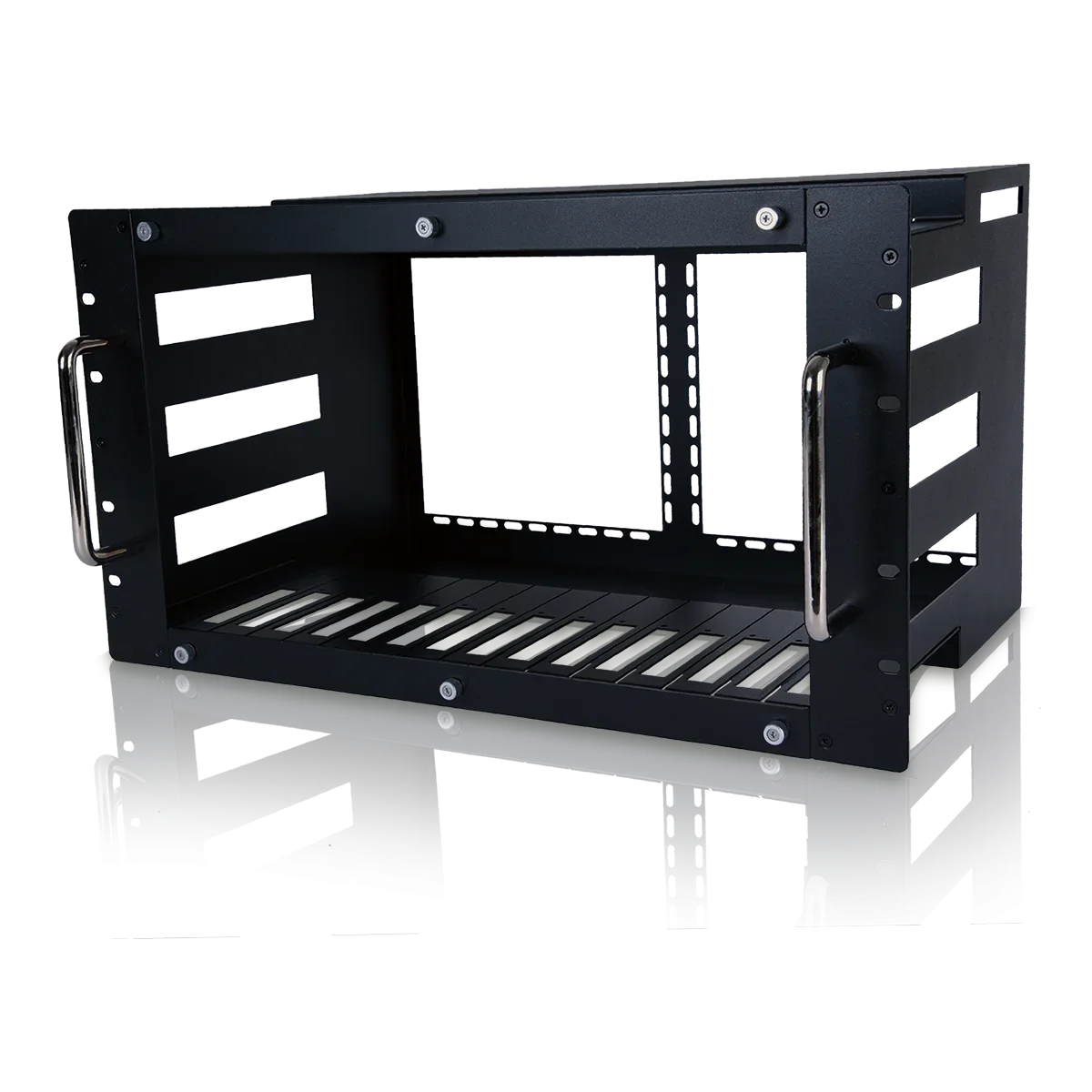

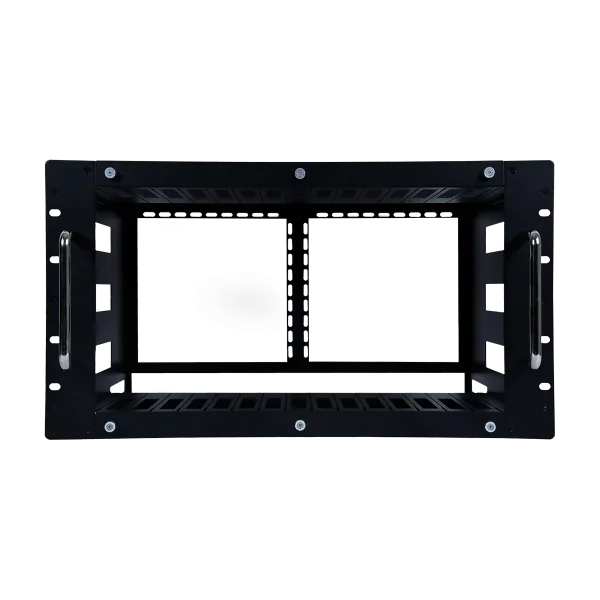

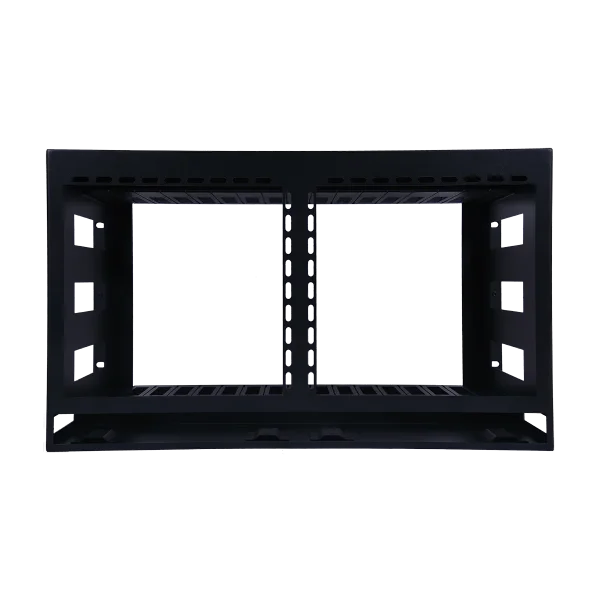

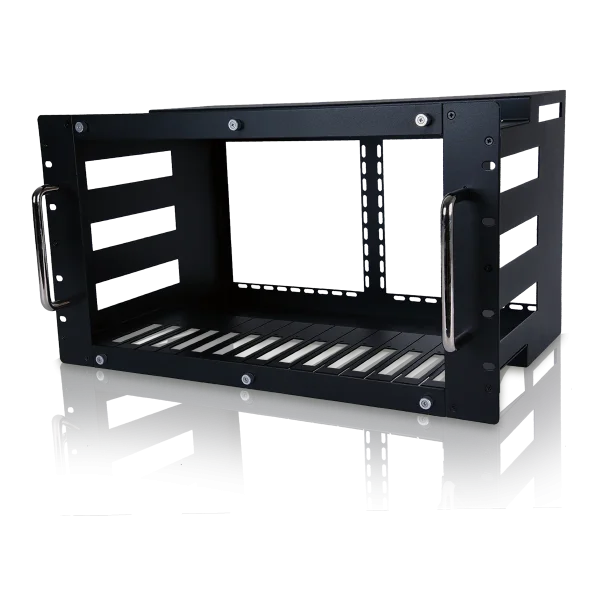

6U Rack Chassis

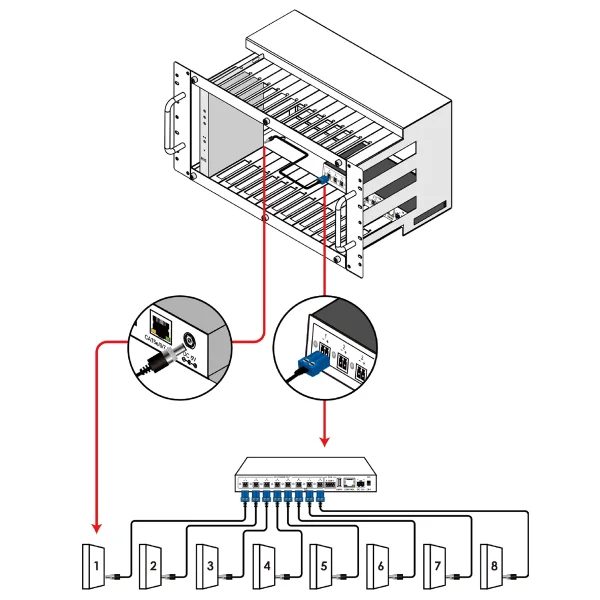

Rack chassis with 19 inch width designed for installation into standard rack cabinets (6U or 3U height), A maximum of 15 individual units may be installed in a single chassis, Optional accessories include: Power supply unit, Cooling fan unit, and empty trays for mounting non-standard equipment, Optional cooling fan units can be temperature controlled to automatically turn the fan on or off as needed, Each optional power supply unit provides remote power control and power state monitoring for up to 8 devices plus up to 2 fans

Hersteller-Nr.	CSR-G6300
Hersteller	Cypress Technology

These flexible rack-mounting systems offer the ability to efficiently house up to 15 professional AV products and are available as either a 6U rack chassis. These storage units are suitable for customers who require the efficient integration and mounting of multiple units into a relatively small rack space along with optional cooling fans and intelligent power control. Each rack chassis is a standard 19 inches wide. The system allows for the optional inclusion of up to 2 power supply units, multiple cooling fan units, and empty trays for mounting non-standard equipment.

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	483mm×264mm×300mm [Case Only] 483mm×264mm×349mm [All Inclusive]
Weight	6,200g

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
