Cypress Technology

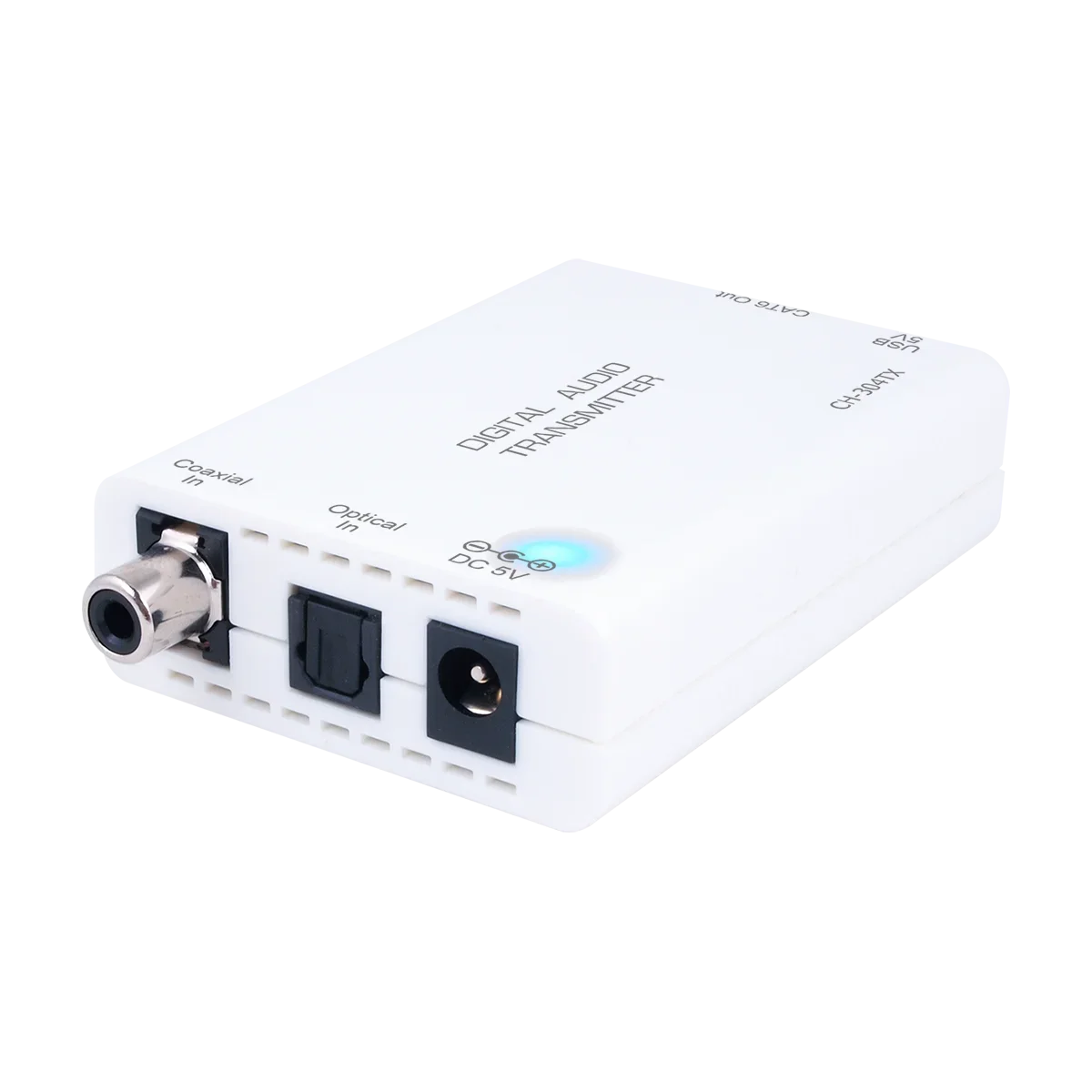

CH-304TX

Supports Coaxial or Optical digital audio S/PDIF signal, Supports stereo and multi-channel digital audio such as LPCM 2 CH, Dolby Digital or DTS 5.1 CH, Supports industry standard Category 5/5e/6 cable, Digital audio S/PDIF performance sampling rate 96 kHz, Supports single Coaxial input to Coaxial signal output, Supports single Optical input to Optical signal outputNote: Only one of the two units need to be powered for both tooperate. Use only a single type of power per unit, either the 5V DCpower supply or the 5V USB connection.

Hersteller-Nr.	CH-304TX
Hersteller	Cypress Technology

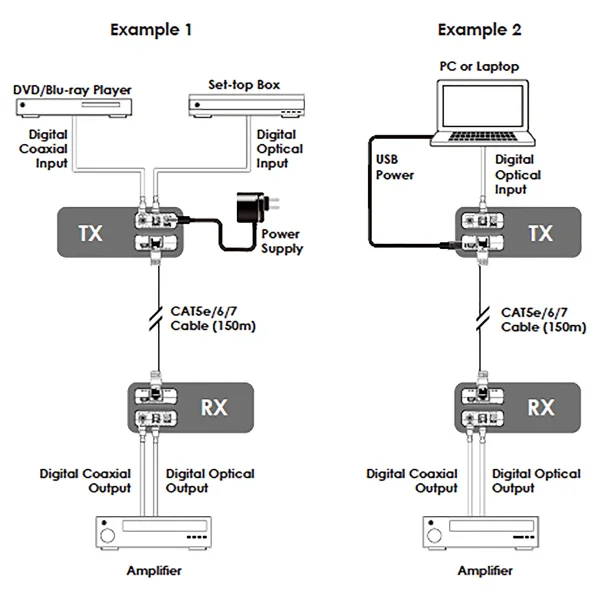

The Digital Audio Extender is useful for sending the digital audio signal up to 150m away at high quality. The units can switch between Coaxial and Optical digital signals and can be powered by either USB or power adaptor allowing users flexibility of choice between power sources. With its elegant and compact design, user friendly operation and easy installation, the Digital Audio Extender is ideal tool for extending digital audio from one location to another.

Interfaces

Input Port

1×Coaxial

1×Optical

Output Port

1×CAT6

Power
Power Supply	5 V/1 A DC (US/EU Standards, CE/FCC/UL certified)
Power Consumption	2W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	70mm×22mm×50 mm
Weight	50g

ORDERING INFORMATION

Model No.	Product Description
CH-304TX	Digital Audio Transmitter
CH-304RX	Digital Audio Receiver

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
