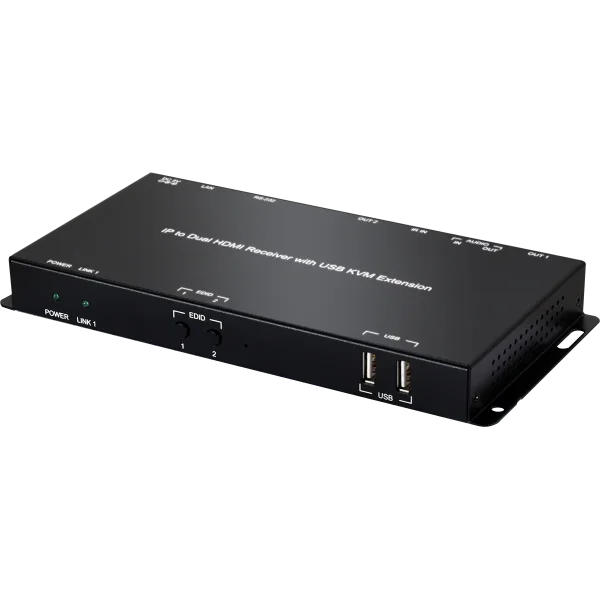

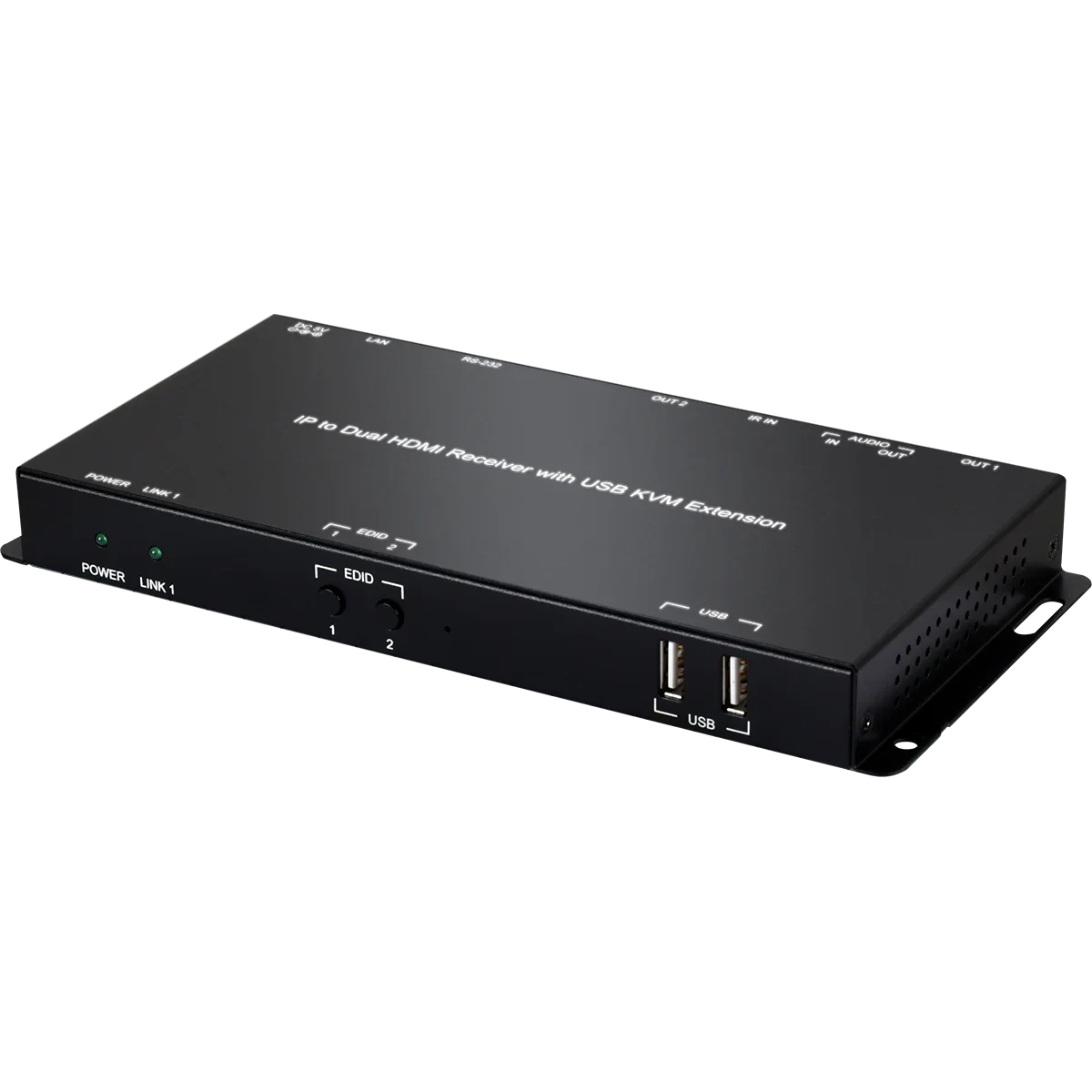

CH-352RX

Supports resolutions up to 1920x1080, DVI supports compatible to 1920x1200., Supports basic USB keyboard & mouse functions, not compatible with USB 2.0 devices with high power demands, storage or hubs. USB touch screens or other advanced interface devices/HIDs are not supported., Simultaneous transmission of video, audio, data over a single Cat.5e/6/7 cable up to 100m (328ft)., Supports USB keyboard, mouse and storage extension., Supports IR and RS-232 bypass., Advanced EDID Supports Internal, External, User mode., Cross-transmit by move your mouse cursor across up to 2 computers and even copy/paste text, images and fi les from one computer to another., Effortless Multi-computer workfl ow.

Hersteller-Nr.	CH-352RX
Hersteller	Cypress Technology

The Dual over IP solution is designed to control and switch between KVM, PCs/ laptops and monitors to any connected devices to controlled dual monitor cross-transmit with single pair of KVM.

Ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms, classrooms or gaming usage.

This KVM Extender allows you to control your PC using a keyboard, mouse and monitor with a maximum resolution of Full HD 1080p or 1920x1200 at distances of up to 100m using one Cat.6 cables.

Effortless MULTI-computer workflow. Move your mouse, keyboard cursor across to 2 computers and Display.

It supports HDMI 1080@60, audio and HDCP. Analogue stereo audio, IR and RS-232 signals are also supported.

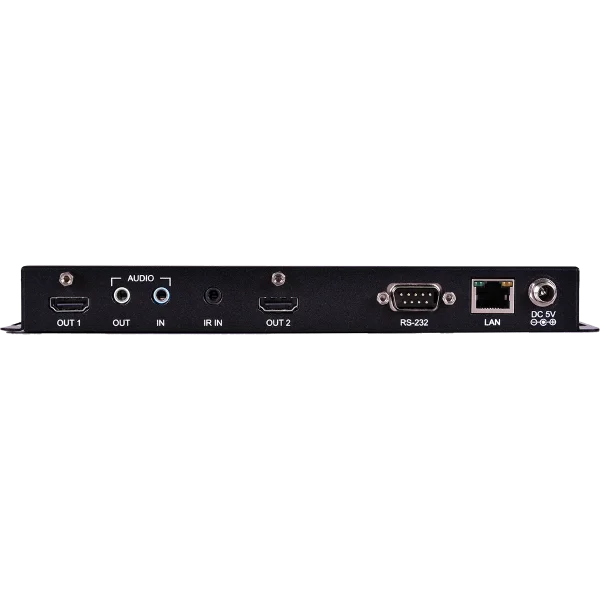

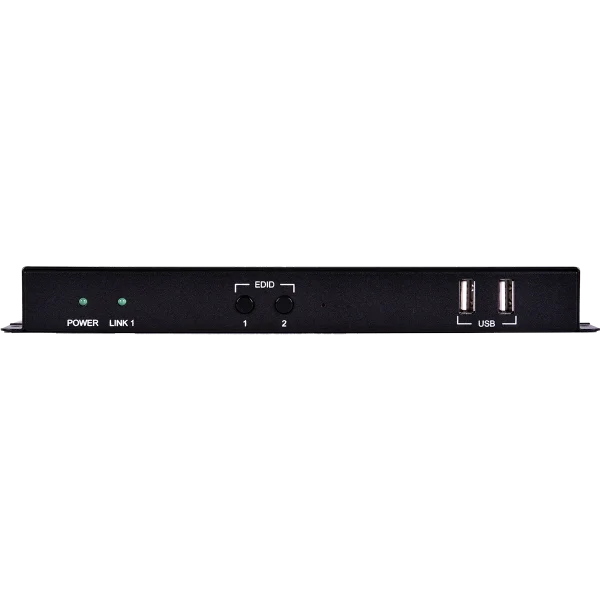

Interfaces
Input Port	1 GbE LAN (RJ-45) 1 Analog Stereo (3.5mm)
Output Port	2 HDMI (Type-A) 1 Analog Stereo (3.5mm)
Control I/O	1 IR Blaster (3.5mm) 1 RS-232 (DB-9) 2 USB (Type-A)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	1.x
Input Signal Type	1920x1080p@60 12 bit
Output Signal Types	1920x1080p@60 12 bit

Resolutions
Maximum Input	LAN (Streaming)	1920x1080p@60
Maximum Output	HDMI	1920x1080p@60

Audio
Digital Formats	HDMI	LPCM (8 Channels)
	Line In	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)
	Line Out	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	5V/4A DC (Locking)
Power Consumption	15W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Weight	636g

Field Firmware Update
Interface	WebGUI

Ordering Information
Model No.	Product Description
CH-352RX	IP to Dual HDMI Receiver with USB KVM Extension
CH-352TX	Dual HDMI to IP Transmitter with USB KVM Extension
CDPS-CS7	AV over IP Master Controller
