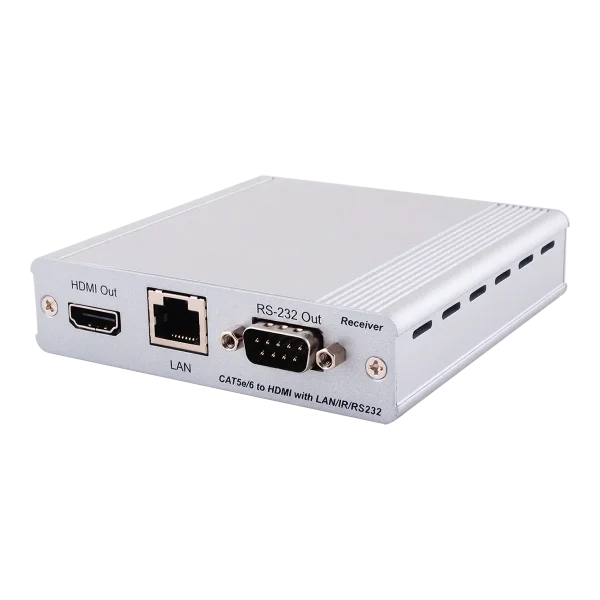

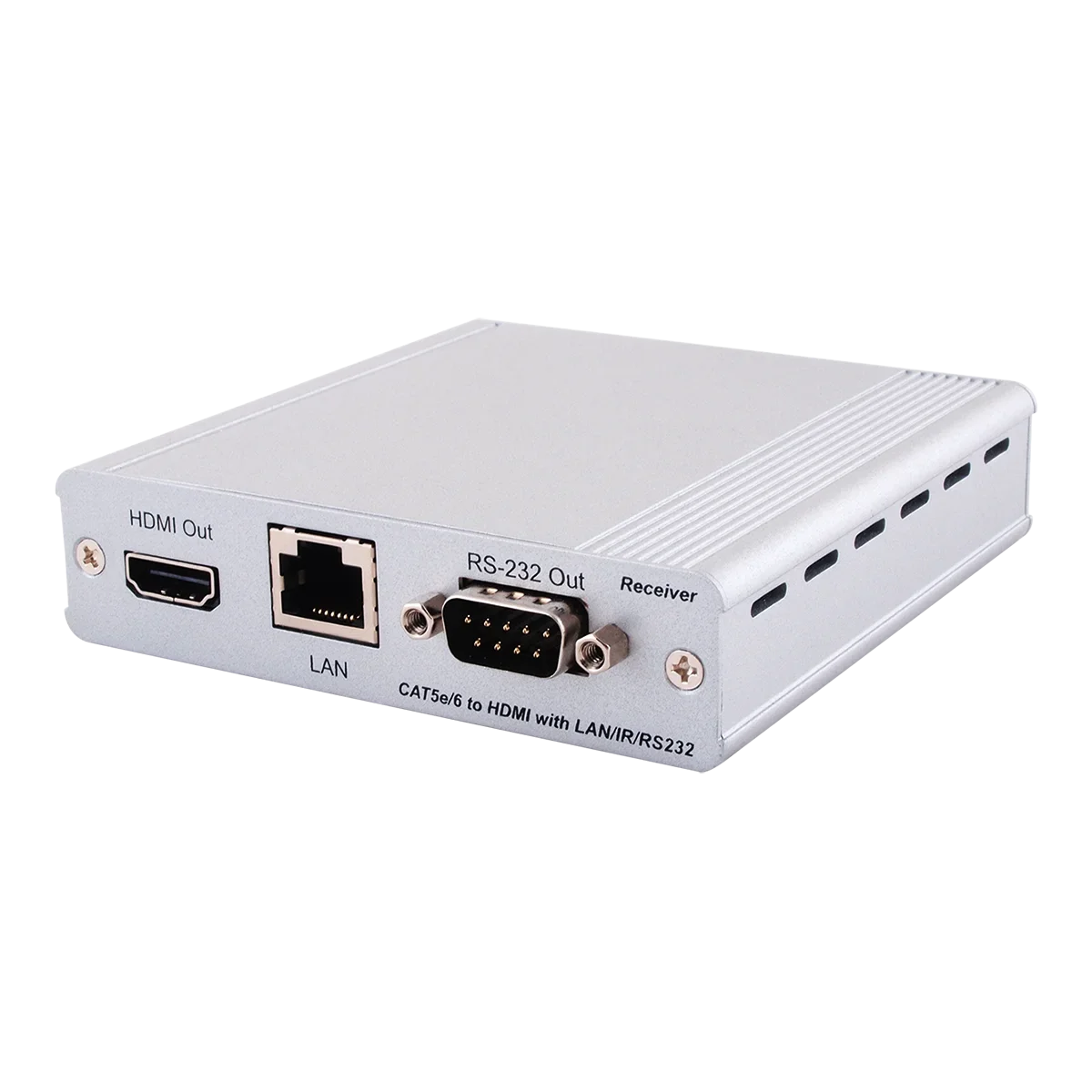

Cypress Technology

CH-507RX

HDMI 1.4 with 3D, 4k2k support, HDCP & DVI Compliant, Supports CEC bypass, Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6 cable, Uncompressed video 1080p, 60Hz, 36-bit, Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio, HDBaseT 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)

Hersteller-Nr.	CH-507RX
Hersteller	Cypress Technology

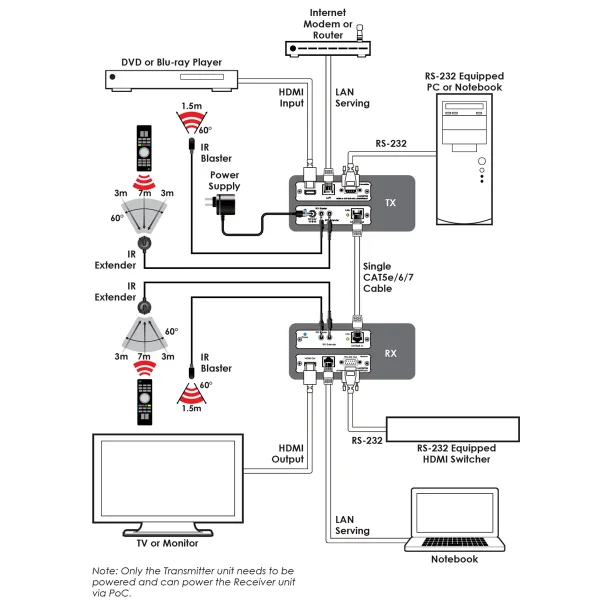

The CH-507TX & RX set allows uncompressed HDMI™ signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.

Interfaces
Input Port	1 HDMI (Type-A) (TX), 1 RJ45 (RX)

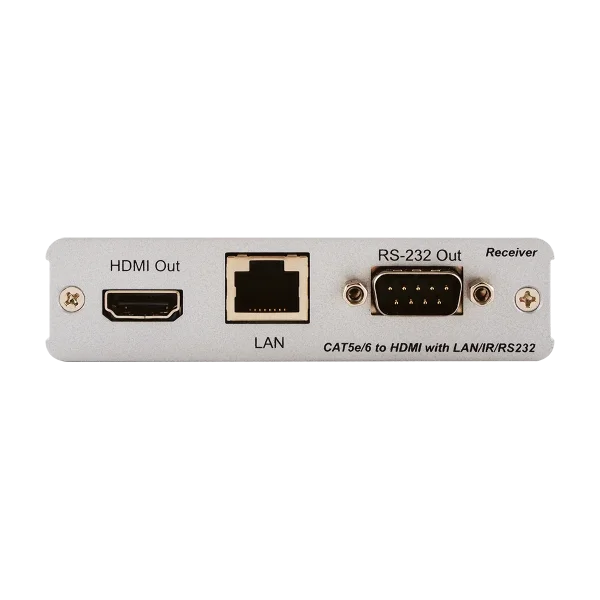

Output Port	1 HDBT(RJ45) (TX), 1 HDMI (RX)

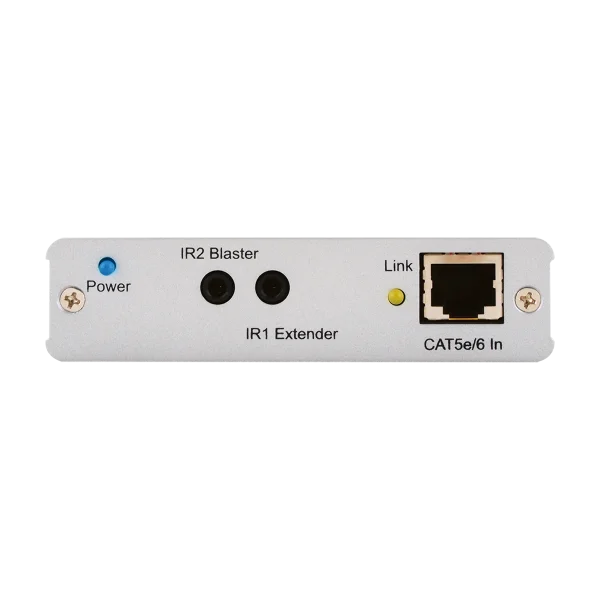

Control I/O	1 IR Extender [3.5mm] (both TX and RX) 1 IR Blaster [3.5mm] (both TX and RX) 1 RS232 DE-9 (female on TX, male on RX) 1 LAN (RJ-45) (both TX and RX)

Video
HDMI Compliance	1.x
HDCP Compliance	1.x
Input Signal Types	HDMI 4K@60 8bit YUV 4:2:0
Output Signal Types	HDBT 4K@60 8bit YUV 4:2:0
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBT	4096×2160p@60 YUV 4:2:0

Audio

LPCM (8 Channels), Bitstream,

High Bit Rate Bitstream

LPCM (8 Channels), Bitstream,

High Bit Rate Bitstream

Power
Power Supply	24V/1.25A
Power Consumption	13W (Full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Silver
Dimensions (W×H×D)	102 mm (W)×113 mm (D)×25 mm (H)/TX 102 mm (W)×107 mm (D)×25 mm (H)/RX
Weight	252 g/TX, 256 g/RX

ORDERING INFORMATION
Model No.	Product Description
CH-507TX/RX	HDMI over CAT5e/6/7 Transmitter and Receiver

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
