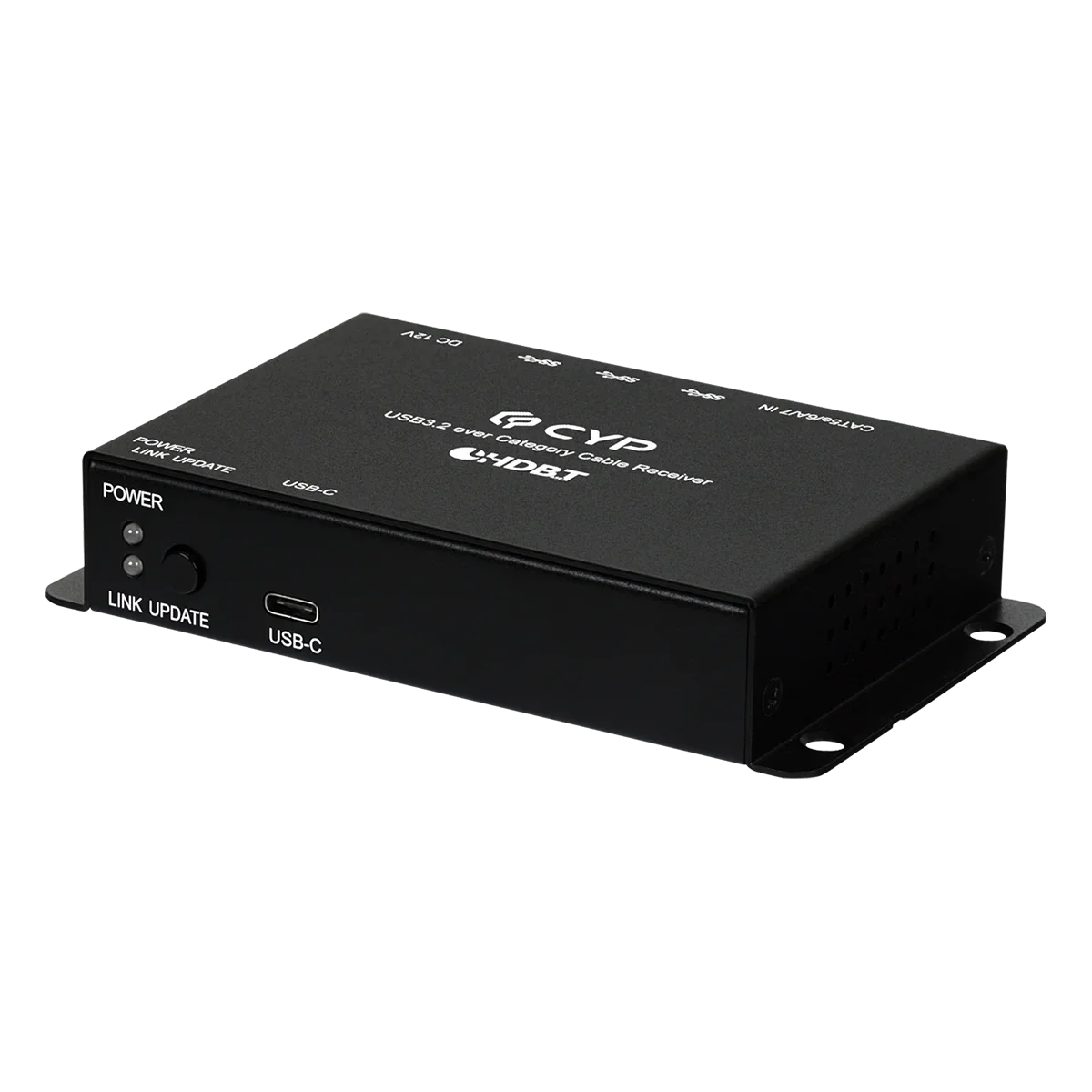

CH-730RX

Support 4 USB 3.2 Gen1 device ports, Support Point-to-Point transmission, Transmission up to 100 meters (328 feet), Devices can be controlled by the USB host on a transmitter, Firmware update with hotkey from the receiver or remote update from the transmitter, Backward compatible with USB 2.0

Hersteller-Nr.	CH-730RX
Hersteller	Cypress Technology

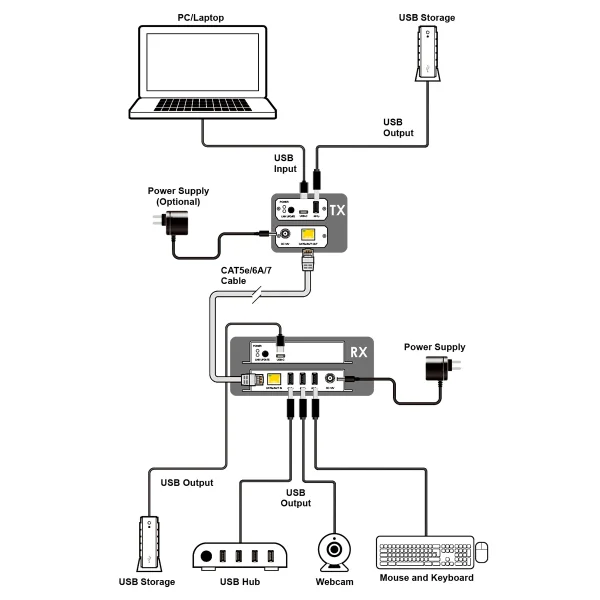

This USB 3.2 Gen1 extender set is designed to extend signal from one USB host to multiple USB devices for up to 100 meters (328 feet) when paired with the transmitter from the homologous series.

This receiver enables users to extend up to 4 USB 3.2 devices remotely, such as flash drives, keyboards and USB cameras. With an adapter, USB-C port supports 5V/3A power and USB-A ports provides 5V/0.9A power to USB devices. The unit also supports a hotkey for convenient firmware update from the transmitter side.

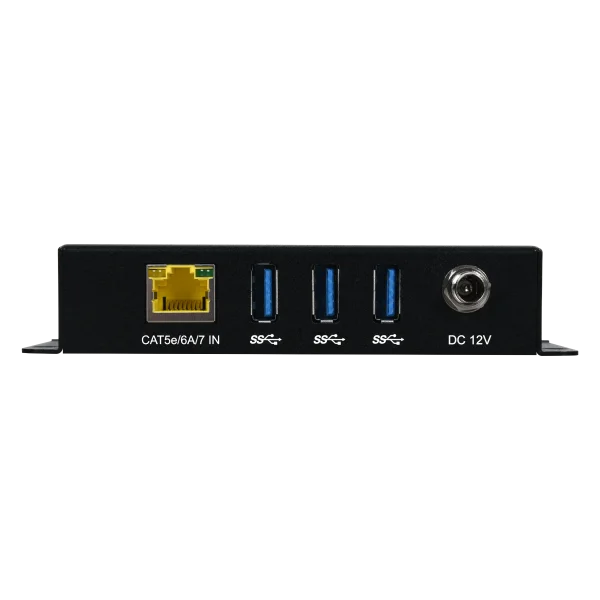

Interfaces
Input Port	1×Cat5e/6A/7 (RJ45)
Output Port	1×USB-C
	3×USB-A

USB
USB Performance	3.2 Gen1, SuperSpeed 5Gbps

Power
Power Supply	12V/3A
Power Consumption	39.173W (full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×75mm [Case Only] 128mm×25mm×83.5mm [All Inclusive]
Weight	275g

Field Firmware Update
PC update and Remote update

ORDERING INFORMATION

Model No.	Product Description
CH-730TX	USB3.2 over Category Cable Transmitter
CH-730RX	USB3.2 over Category Cable Receiver

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
