CL-6P – 6.5”, In−ceiling two−way closed back co−axial passive speaker

The CL−6P – premium sound high performance, 2−way passive closed back ceiling speaker.
The CL−6P is a plenum rated high−performance ceiling speaker that provides exceptional sound with high SPL. The speaker was designed with present mid−range optimized for speech clarity and background music. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The high performance makes it ideal for high−end conferencing spaces and where premium sound quality is essential. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.

• Premium sound with high SPL
• Plenum rated UL2043 & UL1480A
• Low–impedance (8Ω) / high–impedance (70V/100V)
• Power ratings: 30 W continuous pink noise / 45 W continuous program
• Sensitivity (1W@1m, free field): 88dB SPL
• Maximum SPL (@1m): Continuous: 103dB SPL / Peak: 105dB SPL

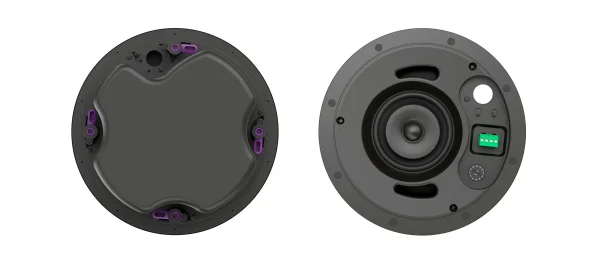

• Industrial design: black & white bezel–less magnetic grills included in the box, Low profile — light weight, front–access wiring
• Eco–friendly mono–material packaging
• Included in the Box — 1 speaker (single unit), 2 speakers are packed in a single master box
  Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
  2 magnetic grills (1 white and 1 black per speaker)
  4–pin pluggable Euroblock connector, 28–12AWG
  Cutout template
  Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
  Quick Start Guide
