COUT-V4CV

4 HDBT output ports paired with IR output and analog stereo output ports, Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color, Supports 12-bit Deep Color up to 1080p@60Hz, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1 Bitstream, and HD Bitstream, This card’s features are controlled by the modular matrix

Hersteller-Nr.	COUT-V4CV
Hersteller	Cypress Technology

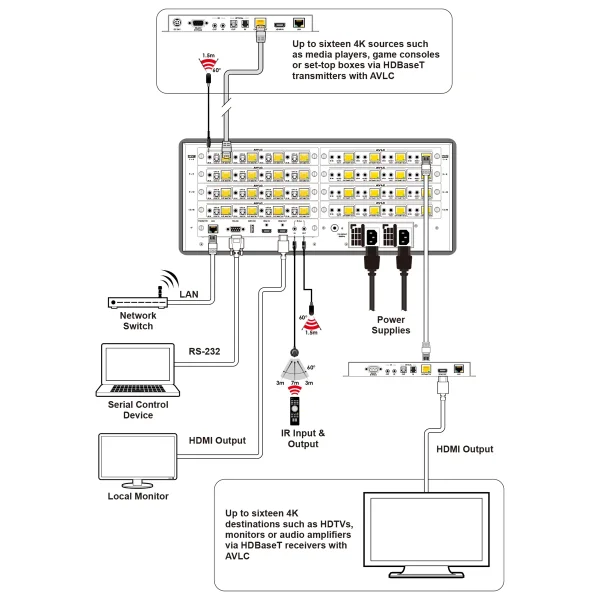

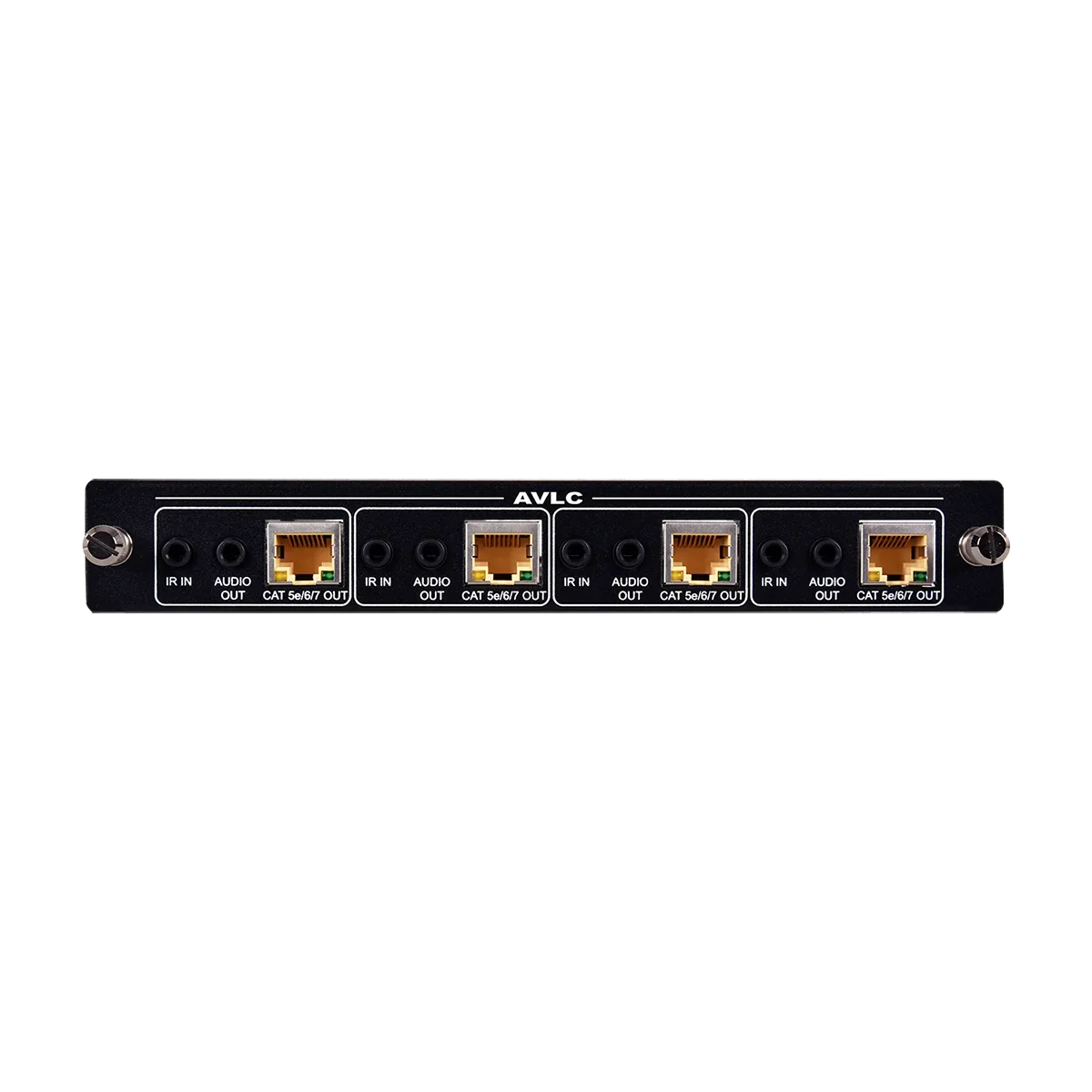

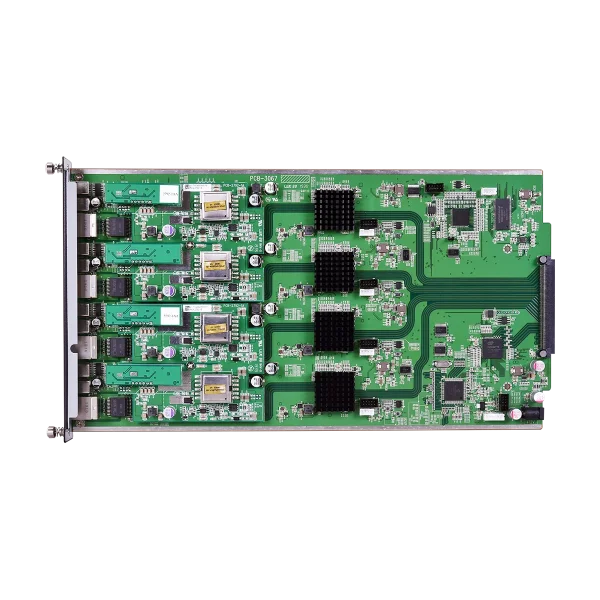

This 4-port HDBT output Card provides 4 independent high-bandwidth HDBT outputs, paired with IR input and analog stereo outputs. Any available input on the connected modular matrix can be freely routed to each output of the card. Despite HDBaseT’s 10.2Gbps bandwidth limitation, each port is able to supports up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR to be received and processed by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter.

Interfaces

Input Port

4 HDBT (RJ-45)

4 Optical audio

Control I/O

4 IR Extender (3.5mm)

Video
HDBT Compliance	HDBT 4K@60
HDCP Compliance	2.x
Input Signal Type	4096x2160p@60 8bit YUV 4:4:4
		Resolutions
Maximum Input	HDBT	4096×2160p@60 YUV 4:4:4

Audio
HDBT	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Optical In	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	187.4mm×29.1mm×344.9mm [Case Only] 197.5mm×29.1mm×364.6mm [All Inclusive]
Weight	458g

ORDERING INFORMATION
Model No.	Product Description
COUT-V4CV	4-Port HDBT with AVLC Output Card
CH-1605RXV	UHD+ HDMI over HDBaseT Receiver with HDR/ARC

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
