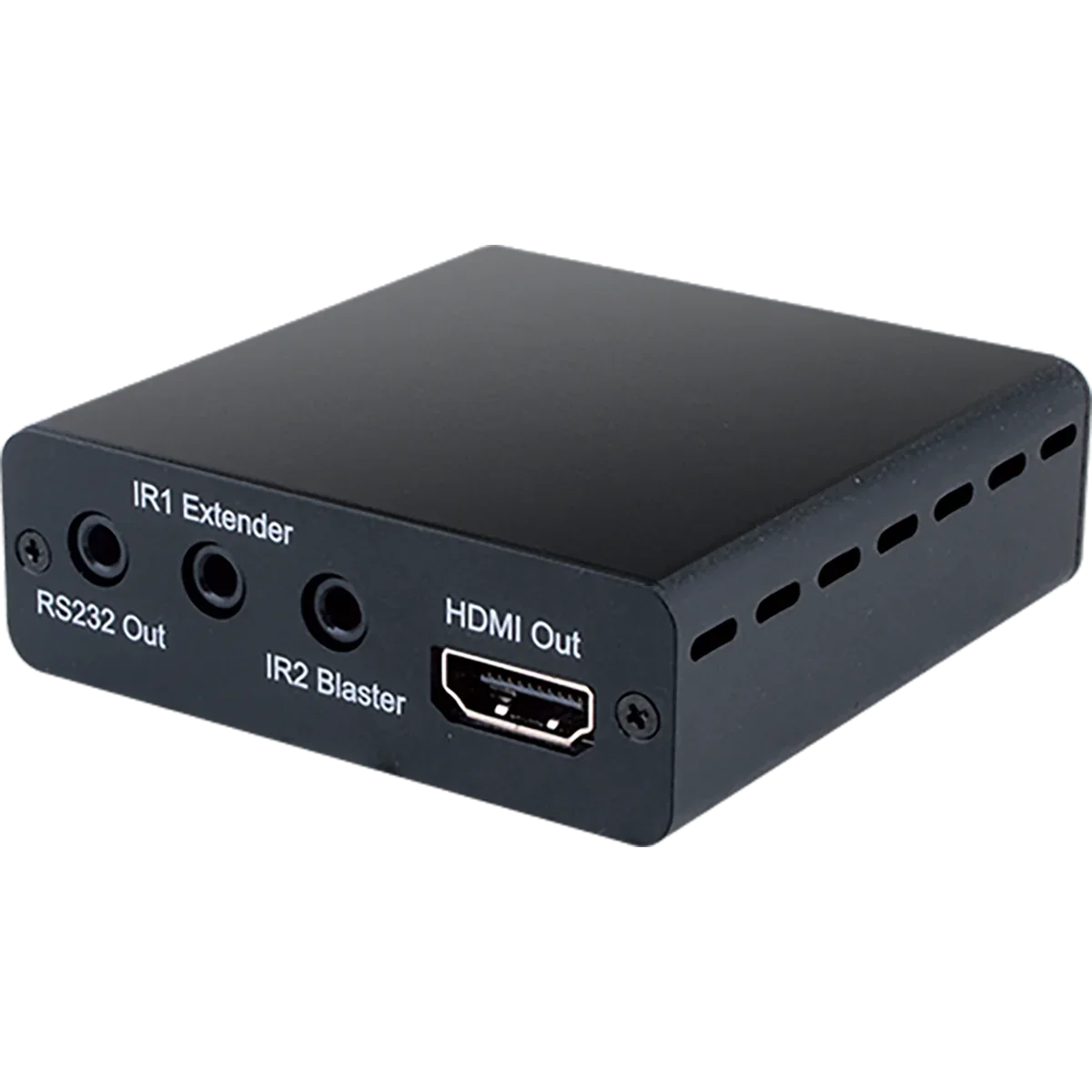

HDMI over CAT5e/6/7 Receiver

HDMI including 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant, Supports HDCP repeater and CEC functions, Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6 / 7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K, Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K), Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio, Supports HDBaseT Technology including 2-Way IR and RS-232, Installation friendly

Hersteller-Nr.	CH-506RX
Hersteller	Cypress Technology

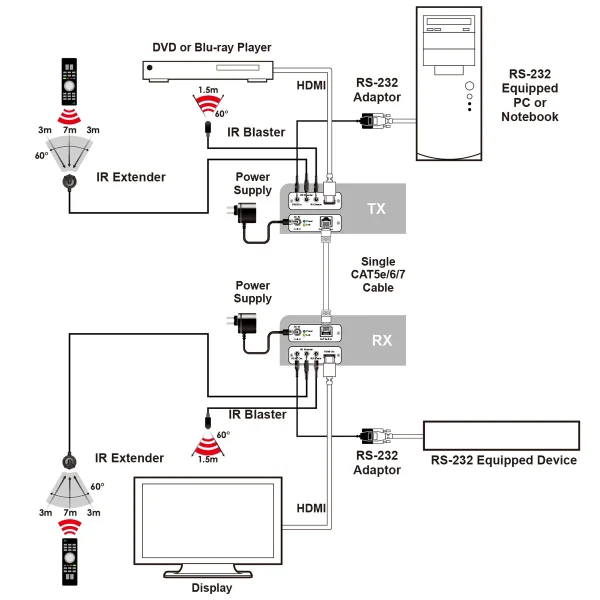

This HDBaseT™ HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.

Interfaces

Input Port

1×HDMI

1×IR Extender

1×RS-232

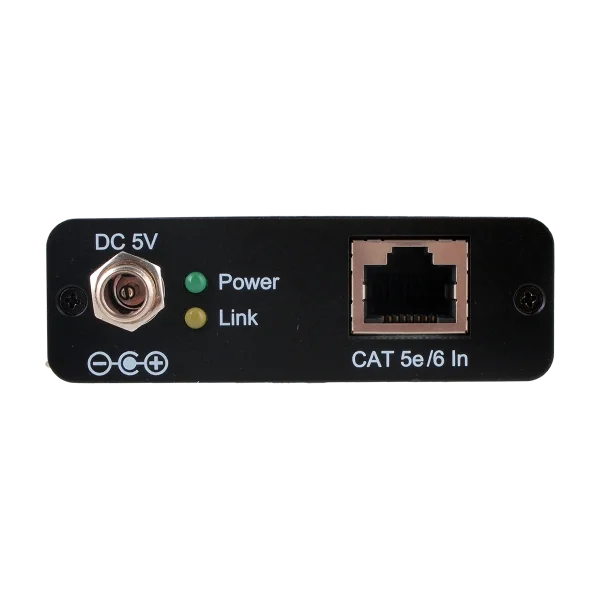

1×CAT5e/6

1×IR Extender

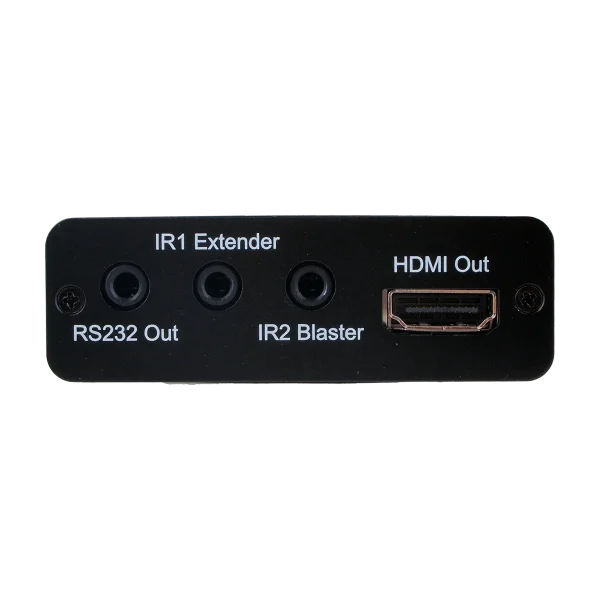

Output Port

1×CAT5e/6

1×IR Blaster

1×HDMI

1×RS-232

1×IR Blaster

Power
Power Consumption	3 W (TX), 6 W (RX)

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	71 mm (W)×79 mm (D)×23 mm (H)
Weight	240 g (TX), 245 g (RX)

ORDERING INFORMATION
Model No.	Product Description
CH-506TX & RX	HDMI over CAT5e/6/7 Transmitter & Receiver

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
