Cypress Technology

CPT-385AMN

Automatically detects and down converts the incoming VGA signal to NTSC or PAL , Supports high resolution PC input timings from VGA to WUXGA (RB) , Scaled video is output simultaneously as Composite and S-Video signals , Output format is switchable between NTSC/PAL , Manual Overscan/Underscan selection

Hersteller-Nr.	CPT-385AMN
Hersteller	Cypress Technology

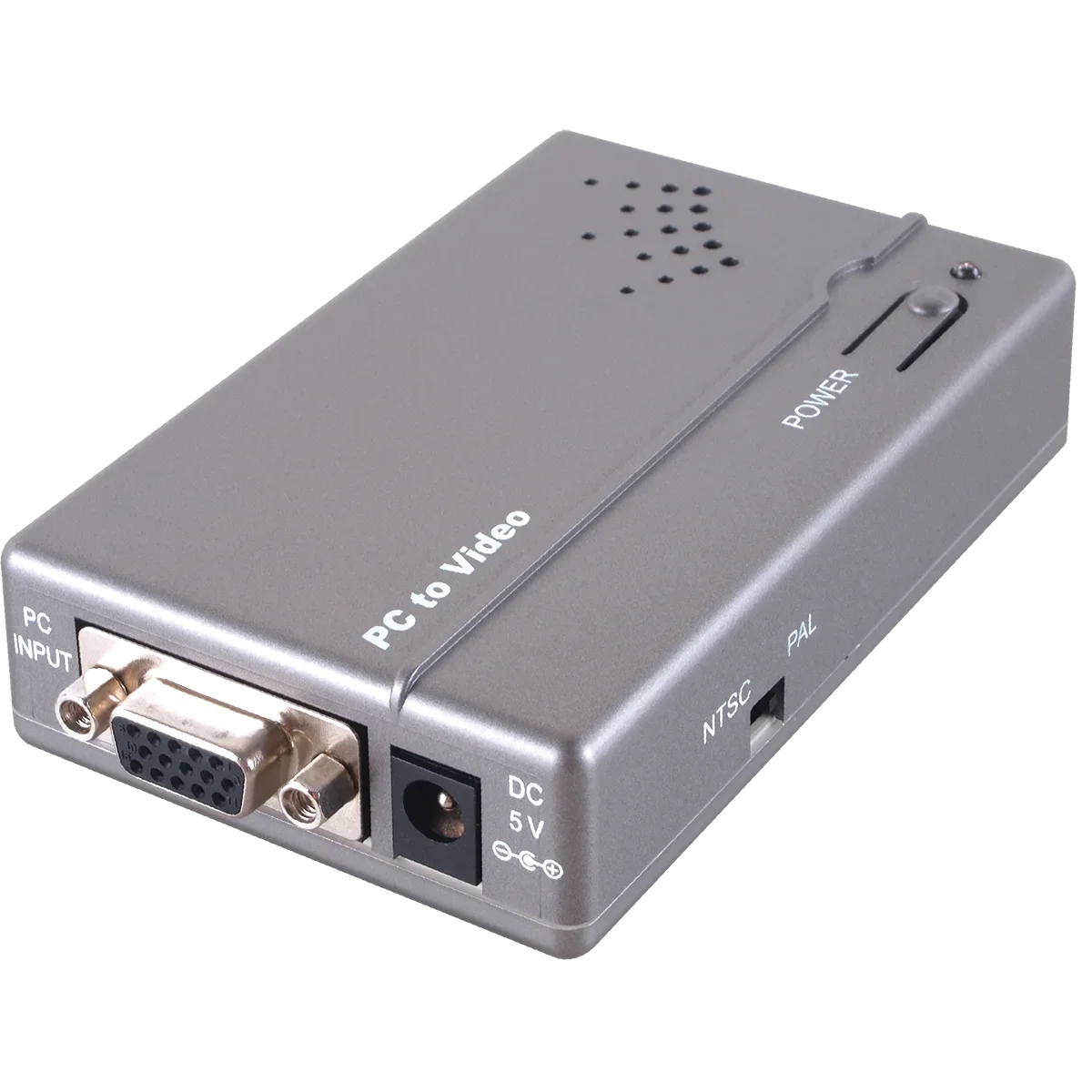

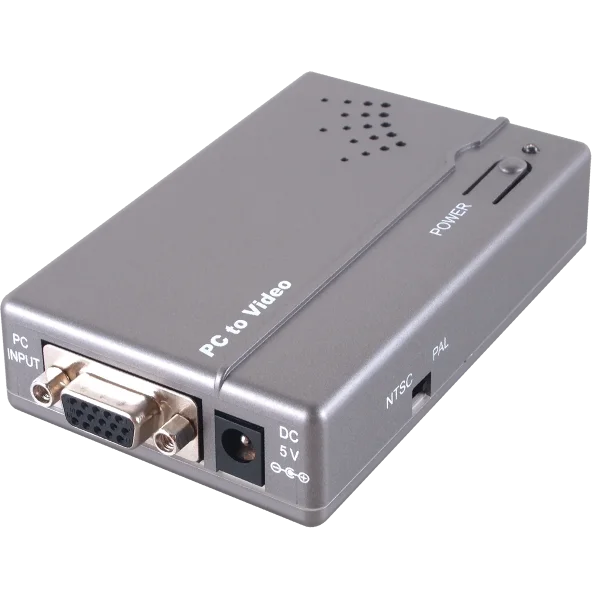

This VGA to CV/SV scaler is designed to convert and scale a variety of analog computer resolutions, from VGA to WUXGA (RB), into interlaced NTSC or PAL video. With frame rate conversion and Overscan/Underscan features that allow users to view a PC source on a Composite or S-Video monitor without the image extending beyond the edge of the screen and being cut off.

Interfaces

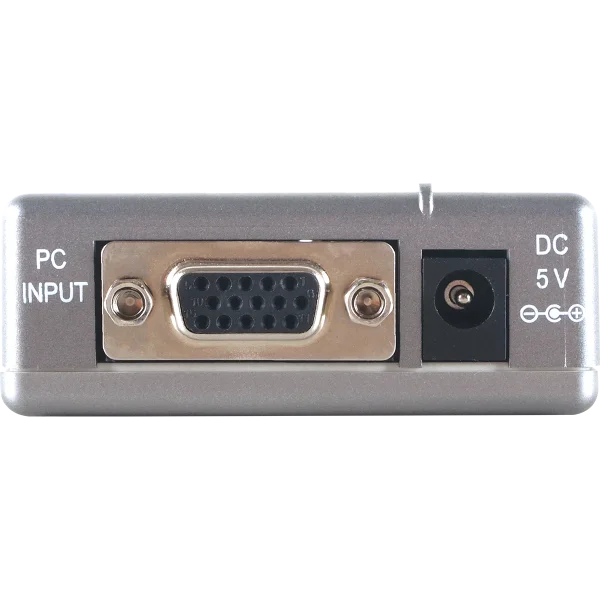

Input Port

1×VGA (HD-15)

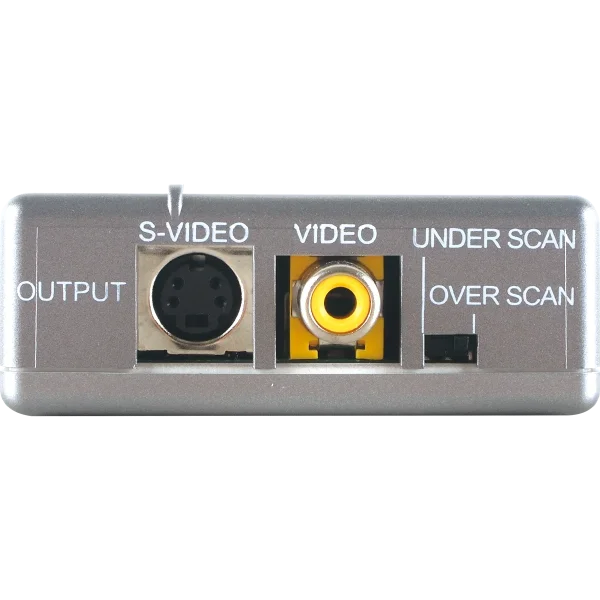

Output Port

1×S-Video (4-pin mini-DIN)

1×Composite Video (RCA)

Video
Input Signal Type	WUXGA
Output Signal Type	CV/SV: NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM
		Resolutions
Maximum Input	VGA	1920×1200@60 (RB)
Maximum Output	SV	480i@60/576i@50
	CV	480i@60/576i@50

Power
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	5W

Enclosure
Chassis Material	Plastic
Chassis Color	Gray
Dimensions (W×H×D)	100mm×18.5mm×64mm [Case Only] 113mm×26mm×64mm [All Inclusive]
Weight	90g

Field Firmware Update
PCB on board, uses RS232

ORDERING INFORMATION
Model No.	Product Description
CPT-385AMN	PC to Video

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
