Cypress Technology

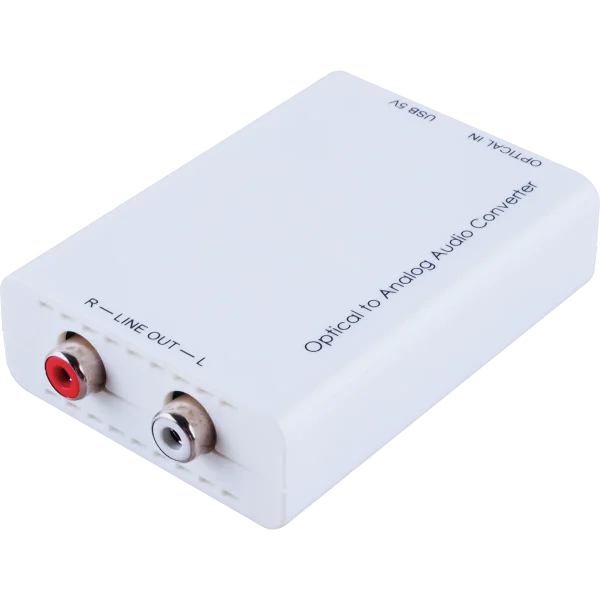

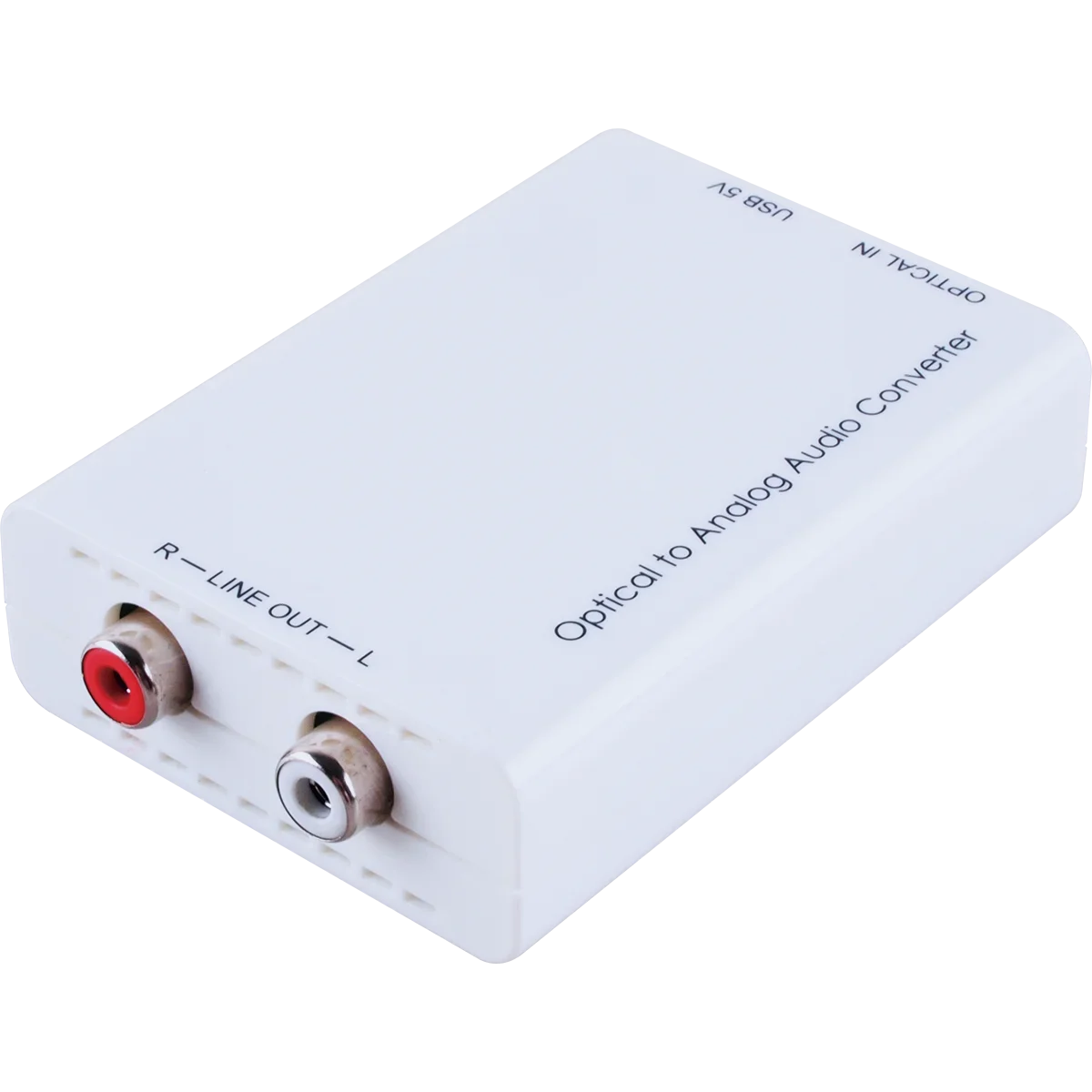

DCT-1

Supports optical digital audio signal input and conversion into analog stereo audio output, Supports uncompressed digital LPCM stereo audio input, Supports LPCM 2CH audio sampling rates up to 192 kHz, Supports S/PDIF bitstream 24-bit of data for the left and right channels, Compact, elegant design and easy to installNote: Does not support the decoding of compressed audio signals such as Dolby Digital and DTS

Hersteller-Nr.	DCT-1
Hersteller	Cypress Technology

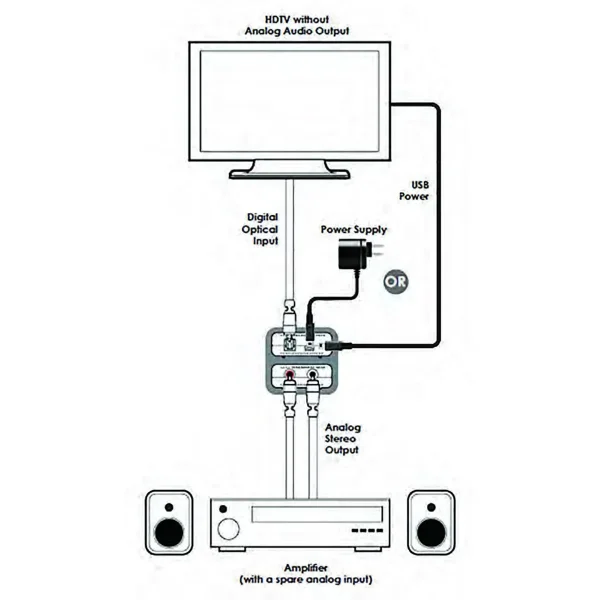

The Optical to Analog Audio Converter (DAC) provides the ideal solution for converting an Optical digital audio signal to analog stereo audio. With support for audio sampling rates up to 192 kHz/24-bit, it provides high quality sound conversion. This unit is perfect for use in, computer audio systems or digital mixing consoles and can be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Blu-ray players or computers without the need for a separate power supply.

Interfaces

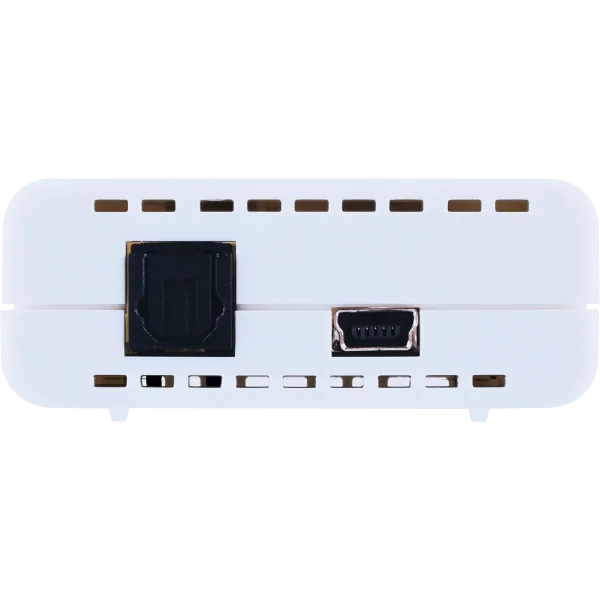

Input Port	1 Optical

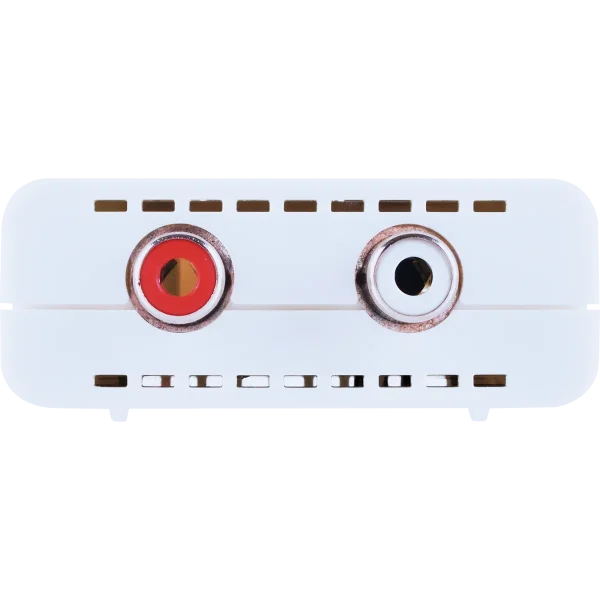

Output Port	1 L/R (2×RCA)

Power
Power Supply	Powered by USB bus
Power Consumption	0.4W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	55 mm x 22.5 mm x 80.5 mm
Weight	40g

Ordering Information
Model No.	Product Description
DCT-1	Optical to Analog Audio Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
